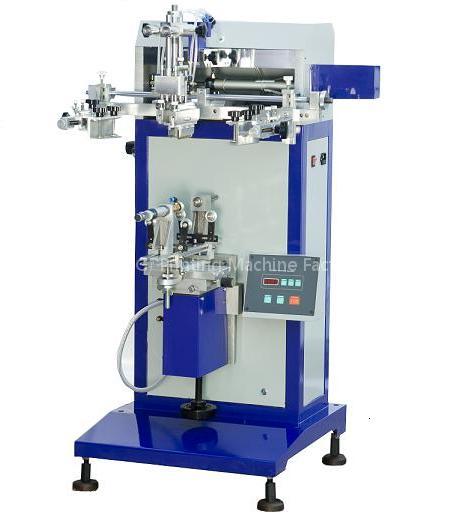

screen printing machine
Listing ID#10174676
ModelYTS-250S
CategoryPrinting Machine
Printing Machine

screen printing machine

Specifications

Origin
china
Request Quote
Quick answer

screen printing machine is a Printing Machine product. Key specs — Origin: china.

Product Description

Feature:1. Microprocessor control with high automation and easy operation;2. 5-digit auto counter built in;3. Auto ink squeegeeing and flooding and worktable elevating;4. Auto balanced squeegee to ensure equalized printing pressure;5. Worktable can be adjusted up/down and left/right as well as turned slightly;6. Printing stroke and speed are adjustable to meet different requirements;7. Safety guard is equipped to meet CE standard and ensure safety.

Parameter——

Max. workpiece diameter: ≤200mm;
Max. workpiece length: ≤280mm;
Max. taper of substrate: forward direction≤15°
backward direction:≤7°
Max. screen-printing diameter for whole circle: ≤Ф76mm;
Max. printing speed: 1500pcs/hr;
Wattage: 110/220V 60/50Hz 50w;
Air consumption: 70Litre/min(6bar);
Dimensions: 844x786x1210mm;
Weight: 127kg.
