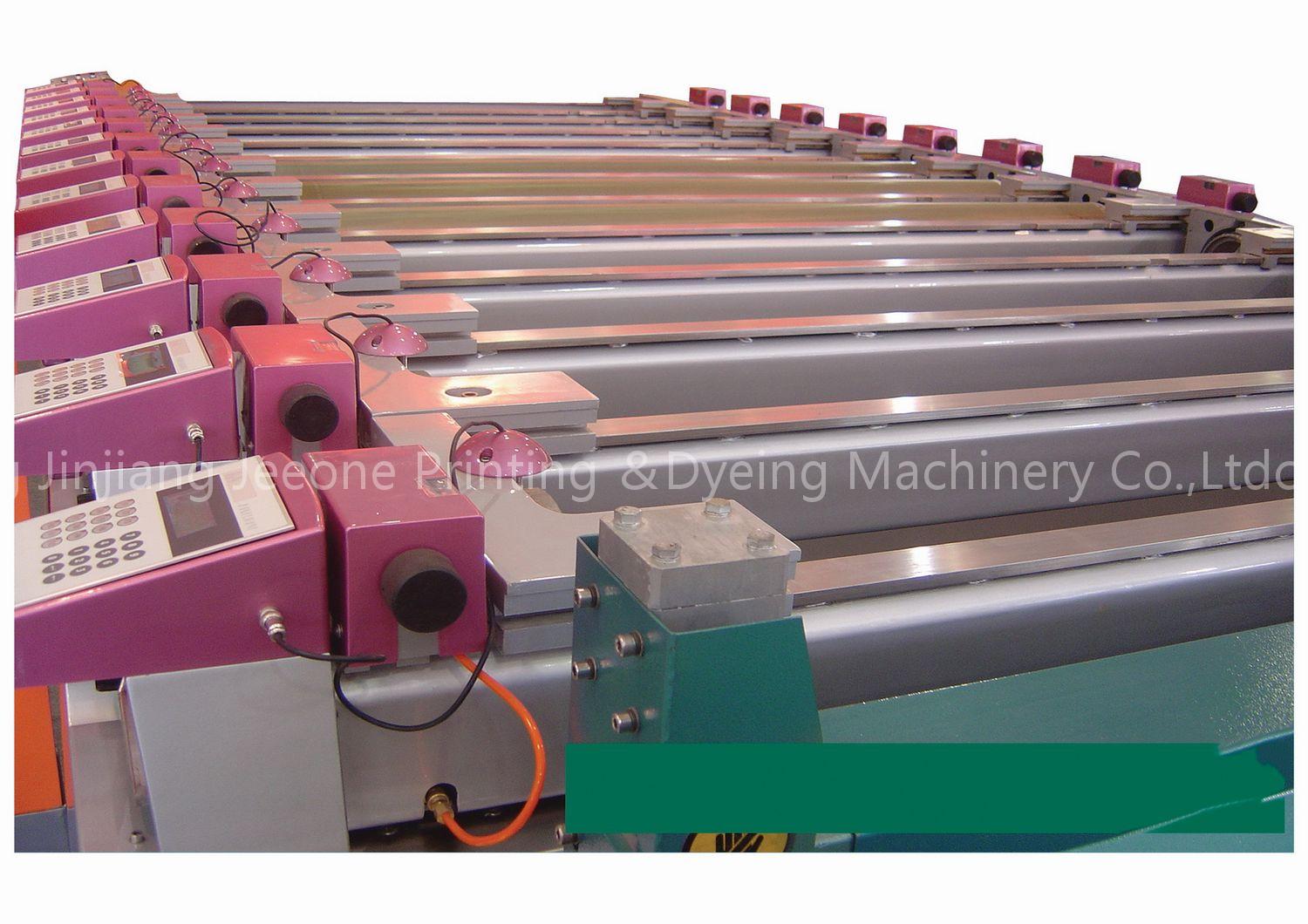

rotary screen printing machine

Detailed Product Description

JX-02 Digital Rotary Screen Printing Machine,Screen printing machines,Printing machinery

1.Function:

The machine is suitable for the printing of natural fiber,chemical fiber,blending woven and knit fabric.

2.Operation Flow:

Fabric Feeding in open-widthPrintingDryingFabric Dropping

3.Technical Specification:

(1)No. of Color: 246810121416

(2)Registering Precision: The error between each printing position is less than 0.1mm, total registering error is less than 0.2mm

(3)Scope of Registering Adjustment : the longitudinal registering is unrestricted, the scope of transverse registering is ±10mm,the declinate registering is ±3mm

(4)Drying Method: Multilayer Hot-air drying

(5)Heated by: Steam(0.2-0.4MPa) Heat-conduction oil

(6)No. of Drying Chamber: 2, 3, 4 (cordwood system type)

(7)Max. Steaming Capacity of Each Drying Chamber: 230-270kg/h (water)

(8)The Working Temprature of Drying Chamber :120 (steam) 150(heat-conduction oil)

(9)Total Power: Standard 110KW

4. Basic Structure:

The machine is driven by three phase AC inverter main components are as follow:

(1) Fabric Feeding Unit (including):

-Machine frame;

-Dust absorption device;

-Transmission roller;

-Fabric tightening device

-Rolling feeding device;

-Brush box and fabric edge control device.

(2)Printing Unit (sectional design):

-Adopt the most advanced independent transmission(driven) system;

-Automatic fabric edge-control system;

-Scraping system;

-Slurry supplying system;

-Washing system,

-Air passage and control system;

-Gluing system of water dissolution glue and heat shaping glue,

-Fabric and conveyor belt heating system

-Conveyor belt rectification system.

(3)Drying Unit:

-Multi-layer structure for fabric passing throgh;

-Heated by:Steam(0.2-0.4MPa) , heat transfer oil(1.675 x 109j/h each section)

-Section No. of drying chamber: 2,3,4 (optional),

-Capacity of each section: 9m (fabric)

(4)Fabric Dropping Device:by fabric dropping roller
