Listing ID#10039211
Model01BQ579-02
CategoryTelecommunications

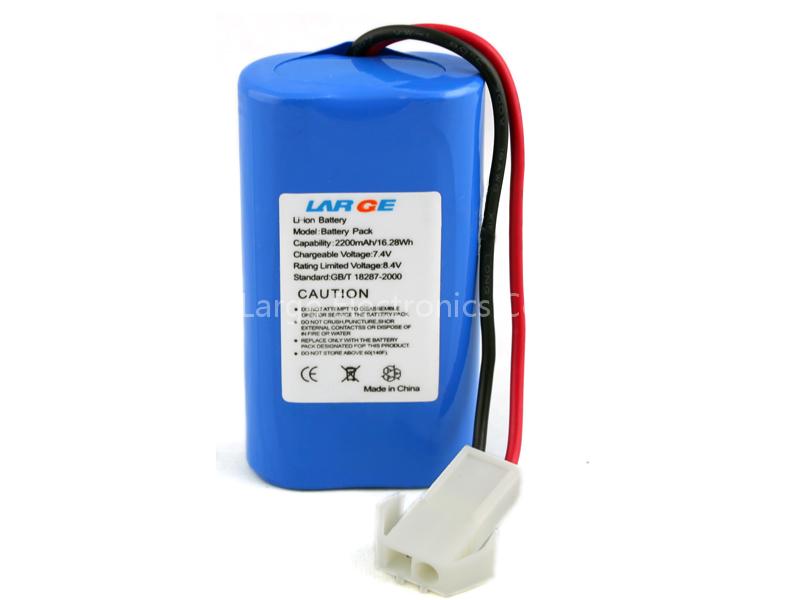

rechargeable li-ion batteries for handheld device
Specifications
- Origin
- CN
Quick answer
rechargeable li-ion batteries for handheld device is a Telecommunications product. Key specs — Origin: CN.
Product Description
1. Combination way: ICR18650-2S1P 2. Rated Voltage: 7.4V 3. Norminal Capacity: 2200mAh 4. Standard continuous discharge current: 0.2C 5. Max continuous discharge current: 1C 6. Working temperature: charge: 0~45℃/discharge: -20~60℃ 7. Dimension: MAX 22*37.5*71mm 8. Internal resistence: ≤250mΩ 9. PCM: IC-S8242AAY+MOQ-AO8810 10.
Protection lead: JST ELP-02V-2P reverse plug UL1007/18#, length: 95mm 11. Protection Parameter: overcharge protection voltage/each serial: 4.25±0.025V overdischarge protection voltage: 3.0±0.1V over current: 5~10A
