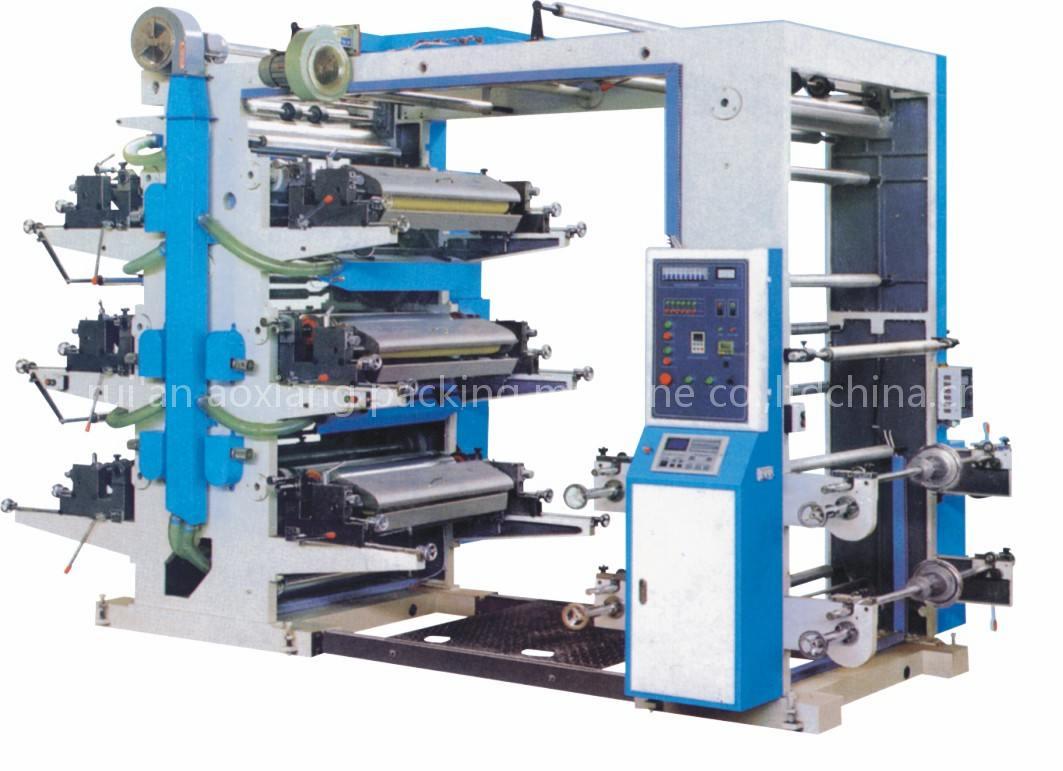

flexographic printing machine

Flexo printing machine with flexible printing plate is suitable for printing such packing materials as polyethylene, polyethylene plastic bag, cellophane and roll paper, etc. And it is the ideal printing equipment for printing paper packing bag for food, supermarket handbag, and clothes bag etc.

Performance and features

1. Easy operation, flexible starting, accurate color register.

2. The number counter can set printing quantity as required. Stop the machine a automatically at the set quantity or when the material is cut off.

3. Life ad lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

4. The printing ink is transmitted by the cobweb barrel with even ink color.

5. Reliable drying system coordinated with high-speed rotation will automatically break the circuit when the machine stops.

6.360° Continuous and adjustable longitudinal register device.

7. The imported frequency conversion control of motor for speed adopts to different printing speeds.

8. There areRun &Stop Buttons on the plate roller base and material drawing-in rack so as to make it easy for operating the machine when the plate is installed.

Technical paremeter

Type	YT-2600	YT-2800	YT-21000	YT-21200
Max.effective printing width	560mm	680mm	980mm	1160mm
width	600mm	800mm	1000mm	1200mm
printing speed	60m/min	60m/min	60m/min	60m/min
Max.Diameter of roll material	450mm	450mm	450mm	450mm
Rang of repeat printing length	191-914mm	191-914mm	191-914mm	191-914mm
Plate thickness(both side adhesive included)	2.38mm	2.38mm	2.38mm	2.38mm
Total power	8kw	10kw	12kw	14kw
Weight of machine	800kg	2000kg	2200kg	2500kg
Overall dimension	2.3x1.6x2.2	2.3x1.8x2.2	2.3x2x2.2	2.3x2.2x2.2
