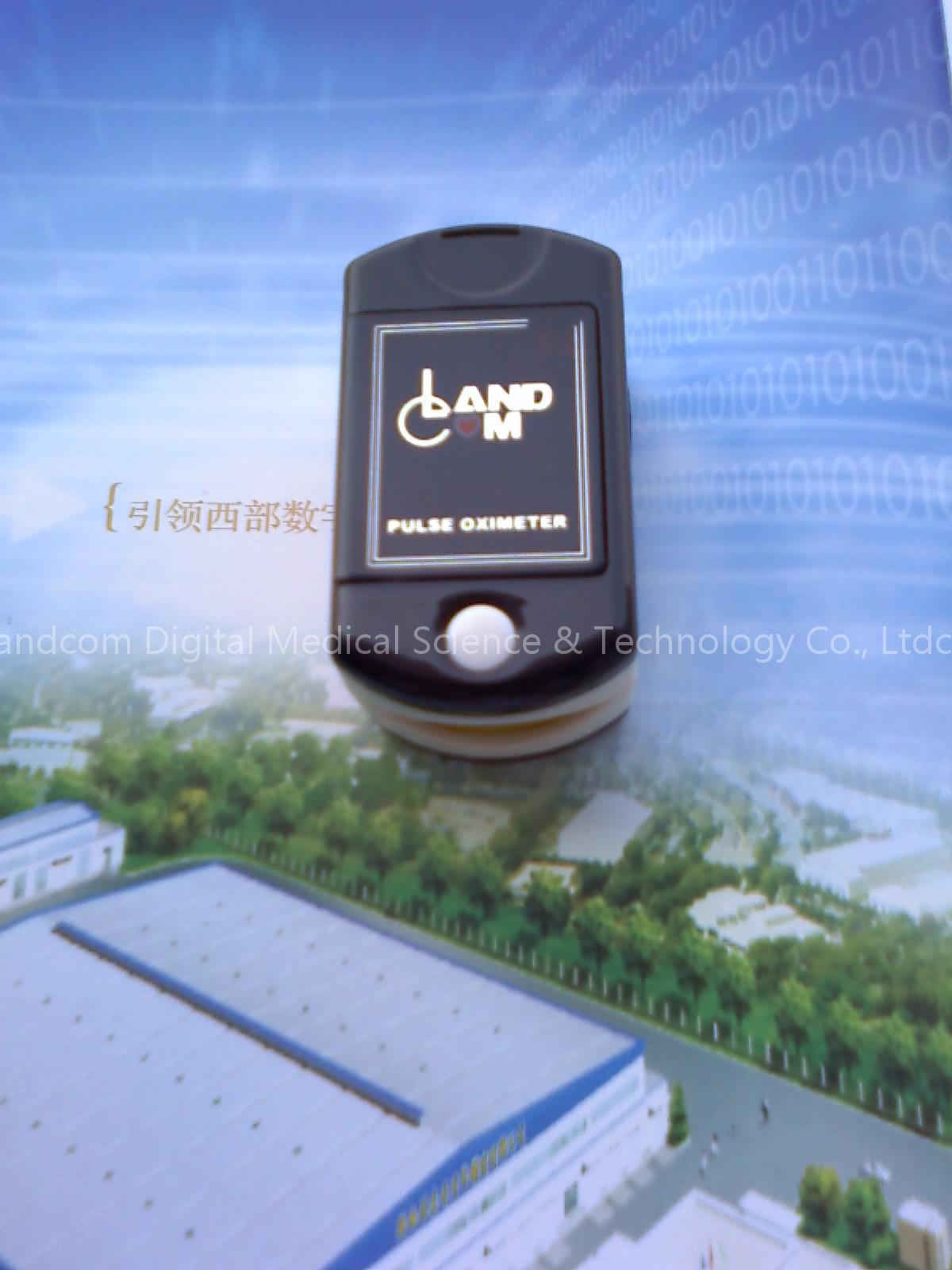

fingertip pulse oximeter-CE Approved

Scope of application: The fingertip pulse oximeter can be used to measure human hemoglobin saturation and pulse rate through is suitable for use in family, hospital, oxygen bar, social medical organization, physical care in sports.

Technical Parameters:

1 Display Format: Display on PC through wireless transmission;

2 Power Requirements: 3.7V Rechargeable lithium-ion battery

3 Power Consumption: Smaller than 17mA.

4 Resolution: ±1% for Hemoglobin Saturation and ±1 BPM for Pulse Ratio.

5 Measurement Accuracy: ±2% in stage of 70%-99% Hemoglobin Saturation and meaningless when stage being smaller than 70%. ±2 BPM for Pulse Ratio.

6 Measurement Performance in Weak Filling Condition: Oxyhemoglobin and pulse value can be shown correctly when pulse-filling ratio is 0.5%.

7 Interference Resistance Capacity against Ambient Light: Deviation is smaller than ±1% between value of Oxyhemoglobin measured in natural lighting indoor condition and present lighting sources and that measured in dark room.

8 It is equipped with a function switch, through which the Oximeter can be powered off in case no finger is the Oximeter longer than 8 seconds.

Product Properties:

1 Operation of the product is simple and convenient.

2 The product is small in volume, light in weight (total weight is about 35g excluding batteries) and convenient in carrying.

3 Power consumption of the product is low.

4 The product will automatically be powered off when no signal is in the product for longer than 8 seconds
