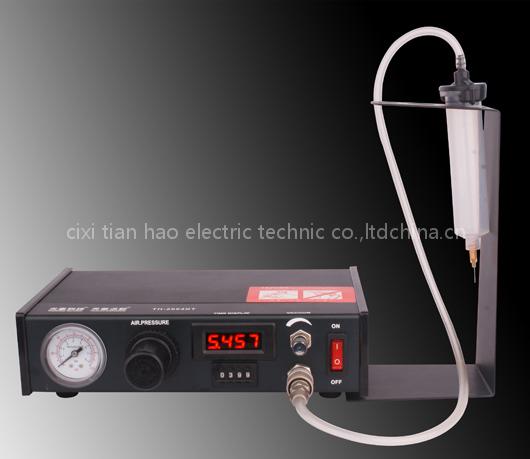

dispensing(coating) equipment with LED screen (TH-2004KT)

This kind of adhesive dispenser are design for medium factories, and with such a adhesive dispenser high production ability and high technology of you products have also been indicated. Also due lacking of workers, surely adhesive dispenser is the best choice for you factory.

mainly features

1,This kind of adhesive dispenser are most suit for those low requirement for the high modernization and also are suit almost all kinds of liquids but for the special liquids such as hot melt adhesive , silicon, pu, uv, they are not suit, but don't worry for a technical factory we also had its special design for those liquids)

2,This kind of adhesive dispenser are also equipped with LED screen ,so it is has the instruction function, it’s much more precision and much more easy.

3,The amount of this adhesive dispenser are controlled by time, that is when you press the button and select one second then the nozzle will just out of one second's amount.

4,This kind of adhesive dispenser are equipped with suck-back function , with this suck- back function we can easily solve the problem sting or drag.

Below is the specification

Standards: CE/ROHS (very hard certificate)

Min deposit: 0.001ml

Repeatability: 0.01% (this is the amount difference between the first time and the last time)

Frequency :>600times/minute

Air input, 1-7 bar (100 psi) maximum

Air output,0.1-7bar

Power: <15W(save much energy)

Input voltage: 110 VAC or 220 VAC

Weight: <3Kg (Very light)

Size: 24.6x21x7cm (Very small ,Not taking you place, just like a small notbook)
