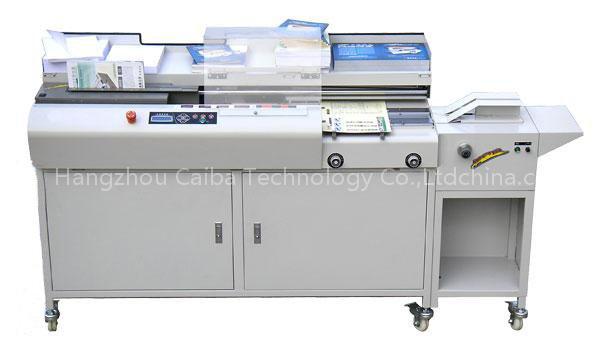

Name: book binding machine
SKU: CB-980Z5

Model				CB-980Z5
Binding length	310mm	420mm(A3)	420mm(A3)	420mm(A3)
Binding thickness	58mm	60mm	60mm	60mm
Binding speed	250-300 books/min	300－380 books/min	300－380 books/min	300－380 books/min
Melting glue time	About 30 minutes		About 35 minutes
Milling cutter	Solar milling cutter+ small milling cutter
Clamping book	automatic
Clamping cover	automatic
Glue roller	single	3	3	3
Independent side glue	×		√
Milling folding pages	Three folding pages
Display	LCD
Clamping cover adjustment	√
Open flat	√
Book-keeping flat	√
Unwanted glue remove function	×	×	√	√
Smoke exhaust function	×	×	√	√
Speed adjustment	×	×	√	√
On-line indentation	√	√	×	√
Power	AC220V(110V)±10% 50Hz/60Hz 2300W	AC220V(110V)±10% 50Hz/60Hz 2300W	AC220V(110V)±10% 50Hz/60Hz 2800W	AC220V(110V)±10% 50Hz/60Hz 2900W
Machine size	1740×560×970mm	2000×650×970mm	1520×650×1030mm	2070×650×1030mm
Net weight	170kg	190Kg	195Kg	225Kg
