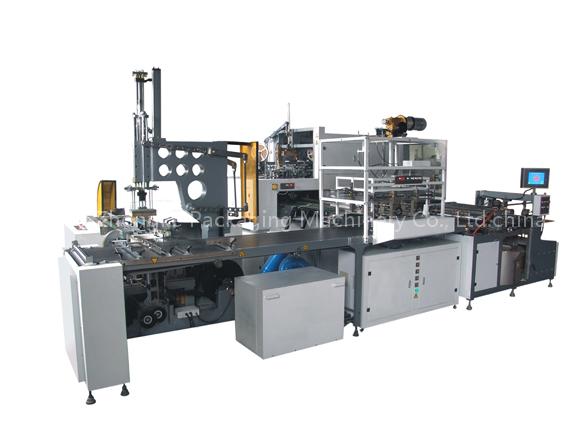

Name: automatic box maker
SKU: ZK-660A

ZK-660A full automatic rigid box making machinery is the most advanced equipment of making the rigid set-up box (such as shoe-box, shirt box, underwear box, gift box, food box, hardware box etc). It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, cardboard folding, spotting, automatic arm guiding, wrapping, box coming out in one process. The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 50 times.

SPECIFICATION

Paper wrap size	Amin	150mm	Paper wrap grammage	Min	100g/
	Amax	580mm	Paper wrap grammage	Max	160g/
	Bmin	180mm	Cardboard blank thickness	Min	0.8mm
	Bmax	660mm	Cardboard blank thickness	Max	3mm
Box size	Lmin	125mm	Speed		1500(Cycle/h)
	Lmax	400mm	Paper pile height		260mm
	Wmin	85mm	Cardboard pile height		1000mm
	Wmax	300mm	Electrical power		20kw
	Hmin	20mm	Glue tank capacity		45(Litre)
	Hmax	125mm	Air supply		12(Litre/min)
Turn in depthR	Rmin	12mm	Net weight		8000kg
Turn in depthR	Rmax	25mm	Machine overall dimension		L6.8XW3.5XH2.6m

The production speed depends on the material used on the box size,on the glue specifications and on the skill of the operators
