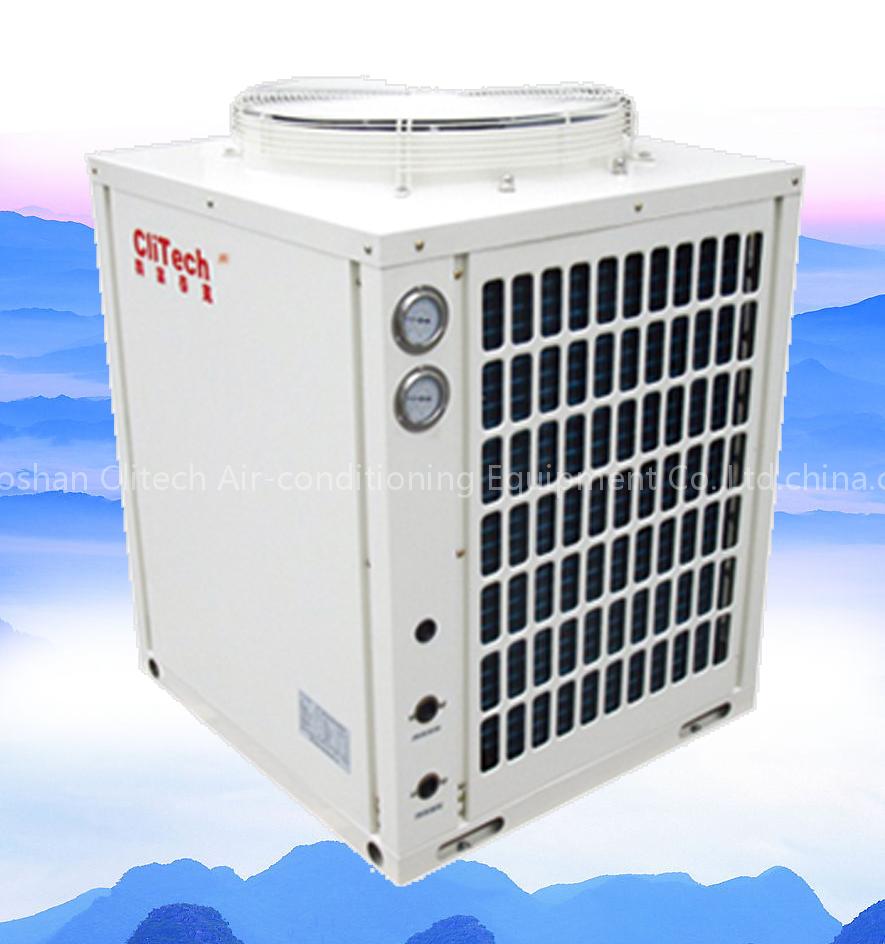

air chilled heat pump

1) Safe and convenient to use: the water and electricity are seperated section, avoid any danger caused from leakage of electricity and dry burning.
2) Automatic control:
a. High/Low pressure protection and insufficient water flow protection;automatic unit on/off timer clock.
b. Automatic reversing defrosting function enables, units to work reliably in hard winter.
c. Unit runs automatically according to set water temperature.
3) LCD display controller, convenient to operate and control.
4) Qualified components:Branded compressor(sanyo, copeland), Emerson expansion valve, Efficient tube in tube heat exchanger, durable and low noise Nylon fans.

Parameter list:
Rated heating capacity: 9.90KW / 33778 BTU
Rated heating input power: 3.16 KW
Rated heating input current: 12.9 A

Rated cooling capacity: 8.40KW / 28660 BTU
Rated cooling input power: 3.23 KW
Rated cooling input current: 13.2 A

Power supply: 380V/220V/ 50HZ
Niose: 40 dB(A)
Compressor: Sanyo, Copeland
Refrigerant type: R417A, R407C, R410A
Throttle type: Electronic expansion valves/thermal expansion valves

Hot water side heat exchanger: Efficient tube to tube heat exchanger
Water flow: 1.81 m3/H
Water pressure drop: 10 kPa
Pipe size: 20 DN

Unit dimension: W1450*D780*H1050 mm
Unit weight: 225 kg
