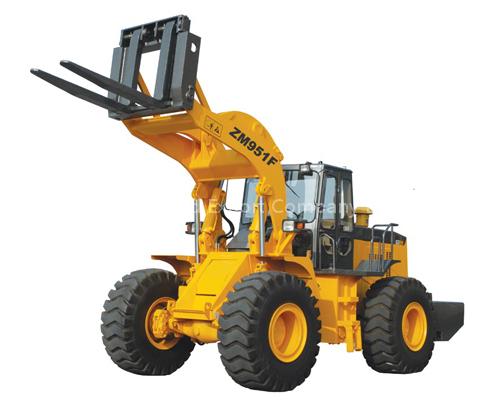

ZM951F Special Wheel Loader

With 16T rated load and 18.5 operation weight.1. Four-element dual-turbine torque converter and continuously variable transmission enable powerful Traction and stable starting. 2.

Four-wheel driving, articulated steering, big-diameter engineering tires, featuring super off-road performance and flexible steering ability, big ground clearance of chassis and capable of adapting to various complicated working conditions. 3. Power shift, flexible and low-effect operation. 4. Disc-clamp-type brake ensures safe and reliable operation. 5.

Z-bar linkage mechanism is adopted to offer big lifting force in the range from ground to1.5m high. 6. The cab provides excellent visibility and is equipped with noise-insulation material and shock absorption device, creating a sound environment for the operator.

The following is the details for special wheel loader: Dumping height: 3450mm Distance to the height(when dumping height 2000: 1180mm Wheel base: 3200mm Tread: 2280mm Min. Ground clearance: 470mm Max.

Steering angle: ±35° Overall length: 8070mm Max. length of host: 6060mm Max. width of host: 2880mm Max. height of host: 3240mm width of fork: 1460mm Distance of rear axle to the link points: 2345mm front overhang length: 2162mm Departure angle: 23° Max.

Hinge axis height When upgrading: 3700mm Max. overall height when Upgrading: 4800mm Unloading angle: ≥8 ° Rear axle Oscillating angle: 10° Max. flip angle(°): -haul location(cardinal axis height 400 mm) ≥14° -Ground location (cardinal axis height 400 mm) ≥13° -Max Hoisting(cardinal axis height 3700mm) ≥34° Haul location height (Ground clearance of material): 300mm Turning radius (tire center): 6019mm Machine’s profile turning radius ( Outside of counterweight): 6470mm Turning radius when fork at haul location: 6470mm
