Listing ID#10150827
ModelZL16FB
CategoryOther Construction Machinery

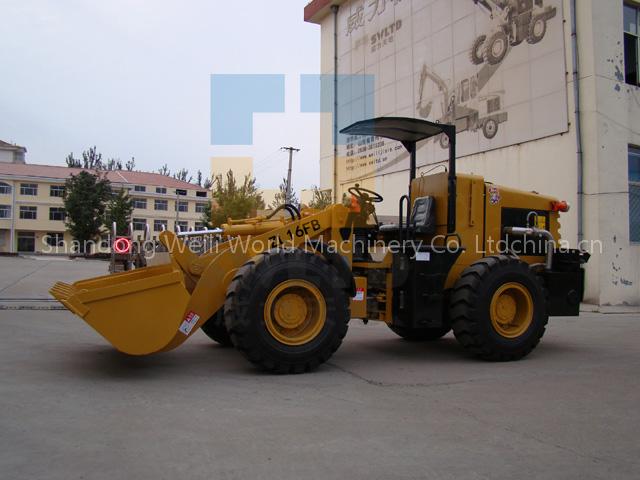

ZL16FB explosion-proof mineral usage wheel loader
Specifications
- Origin
- CHINA
- Price Term
- FOB
Quick answer
ZL16FB explosion-proof mineral usage wheel loader is a Other Construction Machinery product. Key specs — Origin: CHINA; Price Term: FOB.
Product Description
| Serial number | Item | ZL16FB explosion-proof |
| 1 | Rate load (kg) | 1600 |
| 2 | Bucket capacity (m3) | 1.15 |
| 3 | Wheel Distance (mm) | 1565 |
| 4 | Axle-base (mm) | 2325 |
| 5 | Loader clearance radius (mm) | 4600 |
| 6 | Min Base to the ground (mm) | 300 |
| 7 | Dump clearanle(mm) | 1865 |
| 8 | Distance the height (mm) | 1130 |
| 9 | Time of Raise (s) | 3.2 |
| 10 | Hydraulic cycle time (s) | 7.1 |
| 11 | Turns to pick the strength most greatly | 52 |
| 12 | Drive Means | Four are Drive |
| 13 | Operating weight (kg) | 5586 |
| 14 | Overall dimensions : (mm) ( Length*width*height) | 5830*2060*2200 |
| 15 | Engine Model | 4108G94A |
| 16 | Engine Rated power (kw) | 60 |
| 17 | Engine Rated output (rpm) | 2400 |
