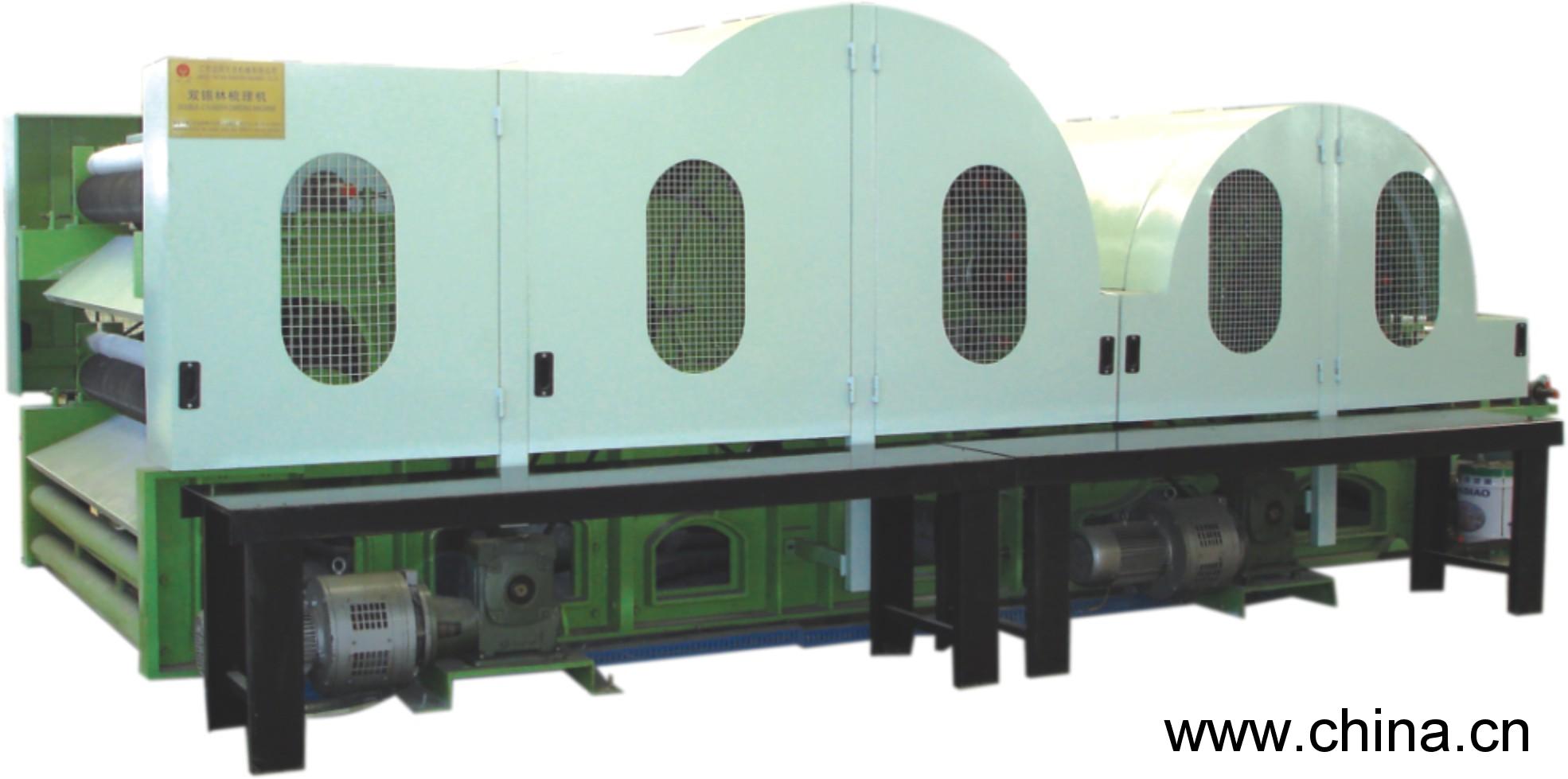

YYSL-Ⅱ Double-cylinder Double-doffer Carding Machine
Specifications
- Brand
- Yingyang
- Origin
- China (Mainland)
YYSL-Ⅱ Double-cylinder Double-doffer Carding Machine is a Textile Machine Parts product. Key specs — Brand: Yingyang; Origin: China (Mainland).
Product Description
YYSL-â…¡ Double-cylinder Double-doffer Carding Machine
Uses and characteristics: It is suitable for carding of 1.5-20D×38-65mm artificial fibre. The fiber is carded fully so that the mesh becomes more even through the double-cylinder carding at high-speed. Feeding roller is driven by frequency conversion and it is equipped with anti-metal protection device.
Main specifications:
Machine width: 1550mm,1850mm, 2000mm, 2300mm, and 2500mm
Primary cylinder: φ850mm
Main cylinder: φ1230mm
Middle doffer: φ635mm
Output doffer: φ492mm
Output speed: 20～50m/min
Cotton stripping: roller
Power: 25kw
