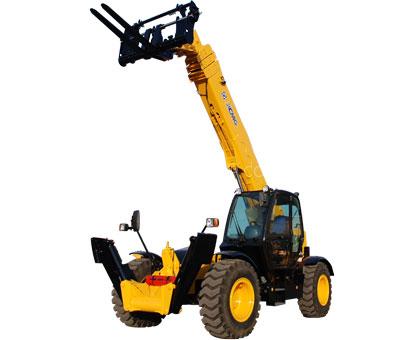

Forklift Truck is a kind of Multi-functional engineering machinery .It can be used for lift and carry, with good stability and efficiency. It has compact frame, flexible operation , sensitive lift, automatic adjustment ,high carrying capacity. Dopt the Cummins engine which is powerful and with low maintenance.

Reach Europe III(EPA Tier3) exhaustion standard, big torque force. Equipped with power transmission, compact structure, high rigidity. With articulated frame, small turning radius. wheel drive, steering by front wheel, and so on. The driver′s cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad.

It adopts shock attenuation, which improved the comportableness of the operating Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences. Multi-function instrument can be chosed..It is a kind of machinery which is suitable for lifting and carrying in narrow ground.Rated power kw 84

Working weight kg 12160

Overrall Dimensions(LXWXH) mm 6360×2440×2690

Turning radius mm 4500

Maximum lift capacity kg 4500

Lift capacity to full height kg 2269

Lift capacity at full reach kg 453

Lift height mm 16700

Reach at maximum lift height mm 745

Maximum forward reach mm 12600
