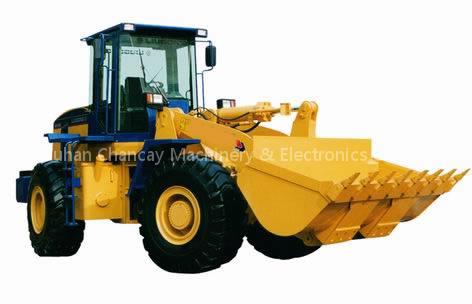

Wheel Loader CLG865(Cummins Engine/ ZF Transmission&axle)
Specifications
- Brand
- CHANCAY
- Origin
- China
Wheel Loader CLG865(Cummins Engine/ ZF Transmission&axle) is a Other Construction Machinery product. Key specs — Brand: CHANCAY; Origin: China.
Product Description
Main attachment: with Cummins C8.3-C engine, ZF transmission&axle, A/C, ROPS cab, full hydraulic brake system, wheel loader scale Optional: Side dump, Rock bucket, log fork, Ore bucket, Bias ply tubeless tires Engine Model:Cummins 6CTA8.3-C215 Rated power (Kw rpm): Transmission: Semi-automatic/Power shift F1/R1(km/h): 6.5/6.5 F2/R2(km/h): 11.5/11.5 F3/R3(km/h): 23/23 F4/R4(km/h): 37/ Differential: Limited Slip Service Brakes: Wet Multiple Disc Hydraulic System Pump type: Gear Total Circle Time (s): 11.5 Loader&Bucket Bucket Capacity (m3): 3.0 Rated load (kg): 5000 Breakout Force,Std Bucket(kN): 160 Static Tipping Load at Full Turn (kN): 105 Dimensions Dump Clearance (mm): 3100 Dump Reach (mm): 1035 Overall Length (mm): 8060 Overall Width (mm): 2976 Height Top of Cab (mm): 3467 Operating Weight (kg): 16800 Tires: 23.5-25
