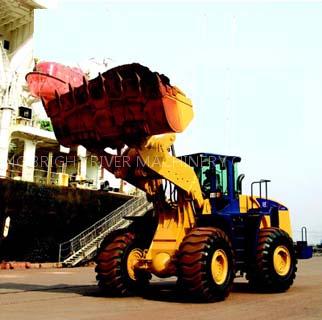

Wheel Loader 888 is a Other Construction Machinery product. Key specs — Origin: China.
Product Description
Feature
Overall data
Operating Weight
28500kg
Bucket Capacity
4.5m³
Rated Load
8000kg
Maximum traction
265kN
Grade ability
30º
Breakout force
260Kn
Static Tipping Load(full 38 turn)
181kN
Engine
CUMMINS M11-C310
Rated power
231kW(310hp)
Peak Torque
Displacement
10.8L
Cylinders-Bore x Stroke
6-125 x 147 mm
Transmission
ZF 4WG
Type:counter shaft power shift, semi-automatic electrical Hydraulic shifting control Converter: single-stage, single-phase, three elements torque Converter Travel Speeds(km/h) Gear1 Gear2 Gear3 Gear4 Forward 7.3 12 24.5 35 Reverse 7.3 12 24.5 Steering Articulated frame, full hydraulic power with flow amplified System, full-flow filtering Axles ZF AP420/R Self-locking differentials and wet multi-disc brakes Brakes Full Hydraulic wet-disc braking Service brakes: All wheels use wet multi-disc brakes Parking brakes: Shoe-type brake, operator applies electronic control Emergency brakes: Using parking brake, the brake will automatically/manually apply. Equipped with braking lowpressure warning system Hydraulic system Relief valve setting 19.5Mpa Hydraulic cycle time, rated load in bucket( in second) Raise Dump Lower(empty,float down) Total 6.3 1.5 3.8 11.6 Capacities Fuel tank 210L Hydraulic tank 230L Tires 29.5-25 Equipment
