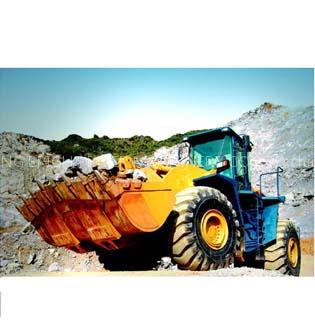

Wheel Loader 888RR is a Other Construction Machinery product. Key specs — Origin: China.
Product Description
Features Overall data Operating Weight 28500+500kg Bucker Capacity 4.5m³ Rated Load 8000kg Maximum traction 238+5kN Grade ability 30º Breakout force 260+5kN Static Tipping Load(full 38 turn) 181kN Engine CUMMINS QSM11-C315 Type 4-cycle,turbocharged electronic controlled diesel engine Rated power 235kW(315hp) Peak Torque Displacement 10.8L Cylinder-BorexStroke 6-125 x 147mm Transmission ZF 4WG310 Type: counter shaft-type power shift, semi-automatic Electrical hydraulic shifting control Converter: single-stage, single-phase, three Elements Torque converter Travel Speeds(km/h) Gear1 Gear2 Gear3 Gear4 Forward 7.0 11.6 24.5 35 Reverse 7.0 11.6 24.5 Steering Articulated frame, full hydraulic power with flow amplified System, full-flow filtering Axles ZF AP420/R Self-locking differentials and wet multi-disc brakes Brakes Full Hydraulic wet-disc braking Service brakes:All wheels use wet multi-disc brakParking brakes: Shoes-type brakes, operator applies electronic contr Emergency brakes: Using parking brake,the brakewill automatically/manually apply.
Equippedwith braking lowpressure warming system Hydraulic system Relief valve setting 20.7Mpa Hydraulic cycle time, rated load in bucket(in second) Raise Dump Lower(empty,float down) Total 6.3 1.5 3.8 11.6 Capacities Fuel tank 445L Hydraulic tank 250L Tires tubeless 29.5-25 Equipment â—Standard â–²Optional â—CUMMINS QSM11-C315 engine â—pilot control â—ZF 4WG310 transmission â—ZF AP420/R axles â—Automatic bucket leveler â—lift kick-out system â—KAWASAKL hydraulic valve â—PERMCO pump â—ROPS/FOPS cab â—Air conditioner â—General bucket â—back-up alarm â—Centralized automatic lubricating system â–²Ore bucket â–²Rock bucket â–²Wheel loader scale â–²Light material bucket
