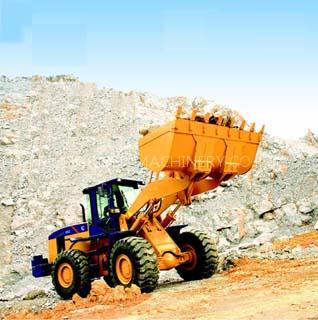

Wheel Loader 862 is a Other Construction Machinery product. Key specs — Origin: China.
Product Description
Overall data Operating Weight 19000+500kg Bucker Capacity 3.5m³ Rated Load 6000kg Maximum traction 171.3kN Grade ability 30º Breakout force 198kN Static Tipping Load(full 38 turn) 124kN (straight) 141kN Engine CUMMINS 6CTA8.3-C240 Rated power 179kW(240hp) Peak Torque Displacement 8.3L Cylinder-BorexStroke 6-114 x 135mm Transmission ZF 4WG200 Type: counter shaft-type power shift, semi-automatic Electrical hydraulic shifting control Converter: single-stage, single-phase, three Elements Torque converter Travel Speeds(km/h) Gear1 Gear2 Gear3 Gear4 Forward 0~6 0~11 0~23 0~36 Reverse 0~6 0~11 0~23 Steering Articulated frame, full hydraulic power with flow amplified System, full-flow filtering Axles ZF AP400 series Self-locking differentials and wet multi-disc brakes Brakes Full Hydraulic wet-disc braking Service brakes; All wheels use wet multi-disc brakes Parking brakes: Shoes-type brakes, operator applies electronic control Emergency brakes: Using parking brake,the brake will automatically/manually apply.
Equipped with braking lowpressure warning and flameout emergency braking warning Hydraulic system Relief valve setting 20.7Mpa Hydraulic cycle time, rated load in bucket( in second) Raise Dump Lower(empty,float down) Total 6.5 1.5 3.0 11 Capacities Fuel tank 320L Hydraulic tank 210L Tires 23.5-25 Equipment â—Standard â–²Optional â—CUMMINS 6CTA8.3-C240 engine â—pilot control â—ZF 4WG200 transmission â—Automatic bucket return-to-big â—Automatic boom height kickout control â—ROPS/FOPS cab â—Air conditioner â—General purpose bucket â—Backup alarm â–²Wheel loader scale â–²Centralized automatic lubricating system Specifications Dimensions with Bucket A:Height to top of cab and canopy 3467mm B:Ground clearance 431mm C:Length from centerline of front axle 1675mm D:Wheelbase 3350mm E:Overall length 8480mm F:Maximum rollback at full height 62º G:Bucket dump at full height 45º H:Dump reach 1200mm J:Hinge pin height at full lift 4306mm K:Dump height 3200mm L:Maximum rollback at ground 44º M:Hinge pin height at carry position 550mm N:Maximum digging depth 97mm O:Width over tires 2800mm P:Tread width 2200mm Q:Turning radius outside tires 5964mm R:Maximum steering angle(each side) 38º S:Bucket width 3010mm T:Turning radius outside bucket 6991mm
