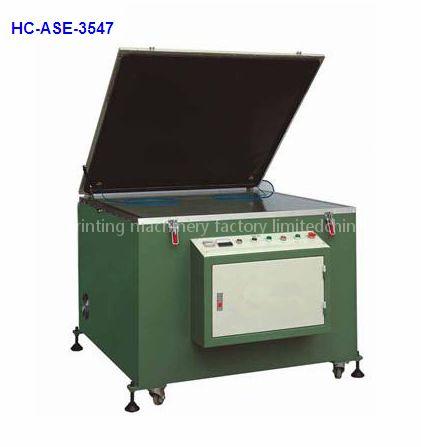

UV Exposure unit

Usage: Screen plate UV exposure machine is used to make screen plate. With vacuum inspiratory ultraviolet light exposure unit with multi function, it’s good for screen plate, thick steel pad plate, thin steel pad plate, resin plate, copper plate, zinc plate and hot stamp plate.

The working principle is to use metal halide UV light for automatic exposure, and transfer picture or text on film to all the above plates.Specification: HC-ASE-3337 UV exposure unit1) Max exposure size: 33.5*37.4 inch (850*950mm)2) Worktable size: 35.4*39.3 inch (900*1000mm)3) Max size of screen frame: 31.5*35.4 inch (800*900mm)4) Light source: Ultra violet halogen lamp 5) Light source power density: 80W/cm6) Platform glass thickness: 10mm7) Vacuum degree: 0.05mpa8) Distance of UV lamp :750mm9) Air consumption:3.5L/circle10) Total power: 1KWHC-ASE-3345 Screen plate UV exposure machine1) Max exposure size: 37.4* 45.2inch (950*1150mm)2) Worktable size: 39.3*47.2 inch (1000*1200mm)3) Max size of screen frame: 35.4* 43.4 inch (900*1100mm)4) Light source: Ultra violet halogen lamp 5) Light source power density: 80W/cm6) Platform glass thickness: 10mm7) Vacuum degree: 0.05mpa8) Distance of UV lamp :750mm9) Air consumption:3.5L/circle10) Total power: 1KW / 3KWHC-ASE-4557 1) Max exposure size:: 45.2* 57.1inch (1150*1450mm)2) Worktable size: 47.2*59.1 inch (1200*1500mm)3) Max size of screen frame: 43.4* 55.1 inch (1100*1400mm)4) Light source: Ultra violet halogen lamp 5) Light source power density: 80W/cm6) Platform glass thickness: 10mm7) Vacuum degree: 0.05mpa8) Distance of UV lamp :750mm9) Air consumption:3.5L/circle10) Total power: 1KW / 3KWFeatures:1) High quality UV lamp can working more than 1000 hours..2) Reflected cover is made of special anti-aging material, high usage of light source.3) Automatic time set up, easy to adjust time.4) Expose time and suction time are adjustable.5) With protected shading door shutter system for continuous expose.6) Automatic light source switch, easy operate, so as to extend the lamp lifetime.7) Soft blanket ensure vacuumize state to wrap the screen frame strictly.8) High vacuum degree, to achieve screen dot and hachure precision transfer.Power Supply: 220V/110V, 50/60HZ Standard Certificate: ISO9001-2000 Country of Origin: Guangdong, ChinaPayment Terms: T.T, PayPal, Western Union or L/CLead time: Within 5 days when get buyer’s payment or deposit Shippment: By DHL, FedEx, EMS, UPS, by air or by seaGuaranty: one year
