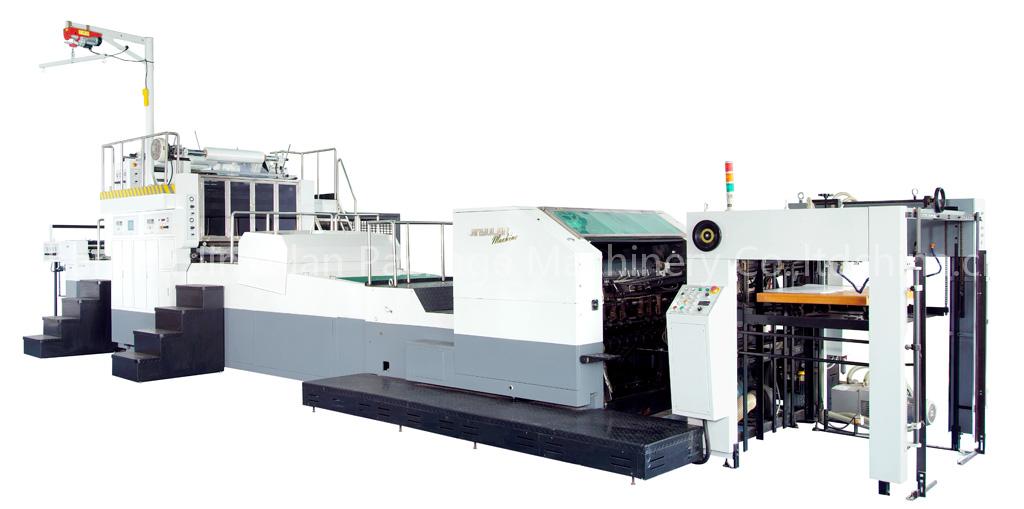

THE PRODUCTION LINE OF HOLOGRAM EMBOSSING & TRANSFERRING

Our company has first-initiated the UVY-92 Laser-Pattern emprinting transfer production Line in the whole country ( This production line has acquired national patent,patent NO: ZL 2004 20071245.5) .The machine unit has already been used in many domestic and overseas factories .

One more step developed , the production line has formed series models with more advanced structure. According to users' requirement , the production line can be configured the device with special function to avoid the junction of stencil on the transparent laser film which our company developed recently.

The machine unit is mainly used in top grade Forge-proof presswork and can copy hologram patterns which are equal to laser film to the prints . The hologram patterns integrate with paper?which features in novel technique? Forge-proof?Energy-saving and beautiful.

1?Environmental — The laser film is not laminated on the paper , which is convenient for the paper to be recycled and reused or be degraded naturally. 2?Anti-countenfeit — with Novel technique, the hologram patterns of prints is hard to be copyed.

3?Energy - saving — Special structure of ultraviolet solidify system which can save energy upwards one times than that use common solidify system?the film can be used repeatedly and reduce waste. 4?Beautiful — transparent hologram patterns serve as a foil to the presswork?flash and bright , give the prints more appendent worth.(mm) Max.

Working Breadth 650 x 915

(mm) Min. Working Breadth 393 x 546

(mm) Max. Printing Area 640 x 910

(g / m2) Weight of Paper 150 ~ 350

(mm) Dimensions For Resin Plate 1.16 x 920 x 760

(mm) Max. Diameter Of Film Materials Ø420

(mm) Max. Width Of Film Materials 920

(sheet/h) Max. Speed 6000

(kW) Total Power ≈ 45

(l x b x h) (m) Outer Dimensions 13 x 3.83 x 3.85

(T) Total Weight ≈ 11
