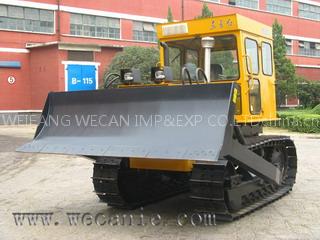

T100G Bulldozer (73.5KW)

Engine Model: LR6105T13A Engine Rated Power: 73.5Kw Max Towing Force: 81Kn Total Weight: 10,650KG(With Ripper) Blade Max Lifting Height: 830MM Blade Max Digging Depth: 350MM Model Number: T100G Overall Dimension: 4,990 X 2,935 X 2,982MM Total Weight: 10,650KG(With Ripper) Engine Model: LR6105T13A Engine Rated Power: 73.5Kw Max Towing Force: 81Kn Price:USD 34,450-36,500 per unit FOB Shanghai(with Ripper Delivery Time: 30 days Payment Terms: L/C,T/T Supply Ability: 80 Unit/Units per Month at least Features: 1) Engine: choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption, stronger torsion.

2) Master clutch: choose dry, double piece and constant combining clutch. 3) Gearbox: choose 4F+2R mechanical gearbox. 4) Turning clutch: choose dry and multi-piece turning clutch, manually operating with hydraulic pressure. 5) Transmission: choose two classes, straight teeth, big modulus gear transmission.

6) Work device: many kinds of work device are chosen for users according to requirements. 7) Operating environment: choose fully completed close, low noise cab. 8) Electric system is characterized by electronic monitor. 9) Reliably using, conveniently maintaining, spare parts are easily purchased.

Specification: Max Towing Force: 81Kn Engine Model: LR6105T13A Engine Rated Power: 73.5Kw Engine Rated Speed: 2,300rpm Fuel Consumption Of The Engine: 238G/Kw.H Engine Max Torque: 400N.M Traveling Speed Forward I-IV Gears: 2.6-10.4Km/H Reverse I-II Gears: 3.1-6.7Km/H Caterpillar Track Board Width: 450MM Land Pressure: 54.5KPa Blade Width: 2,935MM Blade Height: 960MM Blade Max Lifting Height: 830MM Blade Max Digging Depth: 350MM Cutting Angle(Adjustable): 55 Towing Equipment/Ripper(optional): Fixed type/3teeth Overall Dimension: 4,990 X 2,935 X 2,982MM Total Weight: 10,650KG(With Ripper)
