South Korea Lithium Polymer Battery

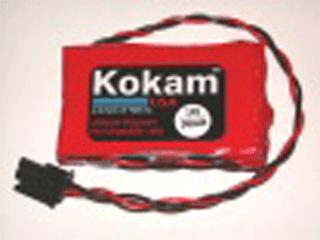

Specifications: 340 mAh 2 Cell Super High Discharge (20C) This 2 cell series pack is composed of Kokam 340 mAh Super High Discharge (20C / 90%) Lithium Polymer Cells. The KOK340SHC cell is the start of a new generation of Kokam high discharge cells.

The pack includes a 3MM connector ideal for interconnection using the 3MM series or parallel connector modules available separately (left).

Mgf: Kokan Accessories and related products: 1500 mAH 2 Cell 7.4V 8C Discharge 1500 mAH 3 Cell 11.1V 8C Discharge 1.25MM, 5 Position Parallel Connector Module Deans Ultra, 5 Position Series Connector Module 1.25MM, 5 Position Series Connector Module 3MM, 5 Position Series Connector Module Kokam Super High Discharge Pack This 2 cell series pack is composed of Kokam 340 mAh Super High Discharge (20C / 90%) Lithium Polymer Cells.

The KOK340SHC cell is the start of a new generation of Kokam high discharge cells. The pack includes a 3MM connector ideal for interconnection using the 3MM series or parallel connector modules available separately (left).

The 340 has unprecedented current delivery capability in that it can deliver up to 6.8 amps continuously with the loss of just 10% capacity. This is more meaningful when compared to NiCd or NiMH batteries under similar conditions as in the following graph.

Compare the weight for a 7.4 V pack of N350AAC Ni Cds ( 3.2 Oz.) or Ni MH ( 2.2 Oz) to the weight of Li Po= 0.7 Oz. 340 mAh, 2 cell series (7.4V), heatshrunk with 3mm connector, super high discharge (20C / 90%) Size: 56mmH x 32mmW x 9mmT Weight: 24 grams Ratings: 20C / 90% Outputs: 7.4V Nominal, 340 mAh Applications: Supports up to 6.8A continuous discharge
