Listing ID#10211767
ModelSolvent Printer
CategoryPrinting Machine
Quick answer
Solvent Printer is a Printing Machine product. Key specs — Origin: CHINA; Price Term: FOB.
Product Description

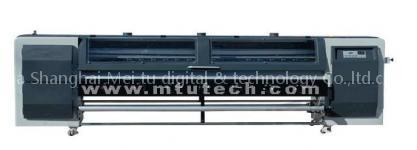

Performance & Heavy-Duty Solvent printer with Konica printhead
Our Konica Solvent Printer satisfy both sufficiently amazing speed of 80 sqm at standard mode, and high quality demands to make your business accelerate. While maintaining your current quality you can typically shorten your job turnaround time by up to 75%. You will no longer lose business opportunities because of an inability to provide immediate deliveries. It is the most durable solvent printer
| MODEL | KN3308H | KN3306H | KN3304H | KN2508H | KN2506H | KN2504H | KN1808H | KN1806H | KN1804H | |
| Printing Width(m) | Up to 3.2m | Up to 2.5m | Up to 1.8(m) | |||||||
| Print Head | Konica-KM512LN(42pl) | |||||||||
| Print Head Quantity | 4*2 | 6*1 | 4*1 | 4*2 | 6*1 | 4*1 | 4*2 | 6*1 | 4*1 | |
| Printing Resolution | 720 dpi | |||||||||
| Printing Speed | Draft | 160m 2 /h | 80m 2 /h | 80m 2 /h | 146m 2 /h | 73m 2 /h | 73m 2 /h | 120m 2 /h | 60m 2 /h | 60m 2 /h |
| Standard | 80m 2 /h | 40m 2 /h | 40m 2 /h | 70m 2 /h | 35m 2 /h | 35m 2 /h | 56m 2 /h | 28m 2 /h | 28m 2 /h | |
| High Quality | 45m 2 /h | 22m 2 /h | 22m 2 /h | 35m 2 /h | 18m 2 /h | 18m 2 /h | 30m 2 /h | 16m 2 /h | 16m 2 /h | |
| Print Head Height | 2 -4mm adjustable | |||||||||
| RIP Software | WASATCH/PHOTOPRINT/MAINTOP | |||||||||
| Dimensions(Printer) | L4750*W930*H 1280mm / 520kg | L4100*W930*H 1280mm / 450kg | L3350*W930*H 1280mm / 380kg | |||||||
| Print Mode | UNI/Bi Direction | |||||||||
| Media Type | PVC Banner/Vinyl Coating Film/Mesh/Fabrics/Paper | |||||||||
| Heater | Front,Middle and Post Equipped | |||||||||
| Ink Type | Solvent/ECO Solvent | |||||||||
| Print Head Controls | Printhead Temperature and Voltage are software adjustable | |||||||||
| Power | Single Phase,220V±40%> 10A ,50/60HZ | |||||||||
| Work Environment | Temperature 18.0ºC -28.0 ºC | |||||||||
| Humidity | 40%-60%RH | |||||||||
| Interface | PCI High Speed Card | |||||||||
| Printhead Cleaning | Positive Pressure Print Head Cleaning | |||||||||
| Auto Feeding and Take-up | Equipped | |||||||||
