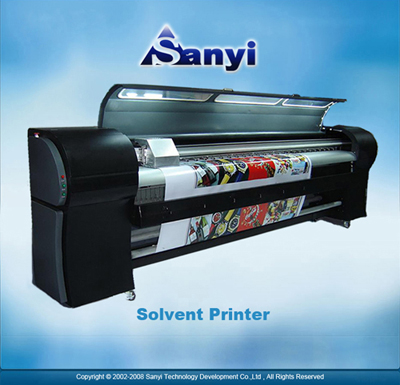

Solvent Printer
Listing ID#10174738
ModelSY-3212N
CategoryPrinting Machine
Printing Machine

Solvent Printer

Specifications

Origin
CHINIA
Price Term
FOB
Request Quote
Quick answer

Solvent Printer is a Printing Machine product. Key specs — Origin: CHINIA; Price Term: FOB.

Product Description

Specification :
ModelSY-3212N
Printhead quantity 12 Seiko spt510
Color CMYK LC LM
Max resolution 720dpi
Width3.2m
Speed

2pass 76/h
3pass 64/h
4pass 48/h
6pass 36/h
8pass 22/h

Media type Normal PVC banner, vinyl, coating film, polyester
Media transfer Roll to roll
Media feeding system Auto feeding and take-up units
Ink supply system Auto pumping
Ink inspection system Insufficient ink detector
Print head height Adjustable distance ranges between 2mm-4mm from media
Heating system Front and rear temperature control, adjustable from 30-80C
Cooling system External cooling fan
Clamp Manual adjustment
Print head cleaning system Auto cleaning device with anti-clogged flash function and positive pressure cleaning and capping system
Printing interface High speed data transport PCI card
Rip software Photo print or maintop
Printer dimensions 4.8m x 0.8m x 1.5m
Weight 600kg
Input voltage AC 110V/220V, 50Hz/60Hz
Software platform Windows XP, 2000
Working temperature 15C-35C
Humidity 40-60%
Packing Wooden case

Features :
* High-Speed Performance and Great Resolution Quality
* Durable Outdoor Solvent Ink
* Advanced Pre-Heater and Cooling System
* Automated Media Feed and Take Up System
* Original Japanese drop on demand piezo print head with steel plate protected.
* Voltage of the print head automatically adjustable to the temperature.
* Skipping white space to increase productivity.
* Delicately designed alloy-aluminum platform.
* Low Maintenance and Ownership Costs
* One-Year Trouble-Free Warranty for all of our solvent printers
