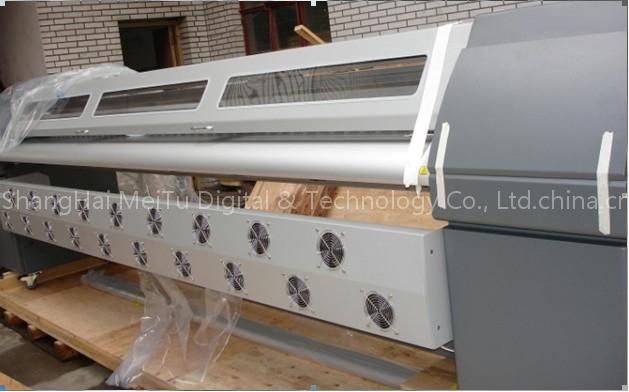

Seiko solvent printer
Listing ID#10211760
ModelSK3204HS
CategoryPrinting Machine
Printing Machine

Seiko solvent printer

Specifications

Origin
ShangHai,China
Price Term
FOB
Request Quote
Quick answer

Seiko solvent printer is a Printing Machine product. Key specs — Origin: ShangHai,China; Price Term: FOB.

Product Description

solvent printer, Seiko print head, 3.2m,

3.2m Series Solvent Printer:

ModelSK3208HSSK3206HSSK3204HS
Print HeadDrop on demand Piezo Head(SPT510-50PL) 720dpi
Number of Print Head8 Heads(Double 4 Color)6 Heads (6 Color)4 Heads(4 Color)
Maximum Print Width3,200mm(125.98”)
Print Speed*157 m2/hr 2Pass95m2/hr 2Pass79m2/hr 2Pass
109 m2/hr 3Pass65m2/hr 3Pass55m2/hr 3Pass
91 m2/hr 4Pass55m2/hr 4Pass45m2/hr 4Pass
70 m2/hr 6Pass42m2/hr 6Pass35m2/hr 6Pass
MediaMax. width3,300mm(129.92')
Max. Weight 90kg
TypeFrontlit,Backlit,Vinyl ,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper…
Thickness4mm(Max.)
Heating SystemPre/Post Heater, Cooling Fan System
Auto Media Feeding&Take-up SystemEquipped
InkTypeSolvent, Eco-Solvent
Capacity1L or 5L per Color Main Tank
Auto Cleaning SystemPositive Pressure Cleaning,Anti-Clogging Flash Function&Capping System
Print InterfaceOptical Fiber
Power SpecificationAC 220V/230V 50Hz/60Hz 2000W
Operational EnvironmentTemperature:20°C-28°C Humidity:40%-60%
Compatible RIP SoftwarePhotoprint,UltraPrint,Topaz,Wasatch,Caldera,Maintop
Dimension&WeightMachineL4,440mm X W770mm X H1,280mm 430KG
PackingL4,950mm X W920mm X H1,540mm 710KG
