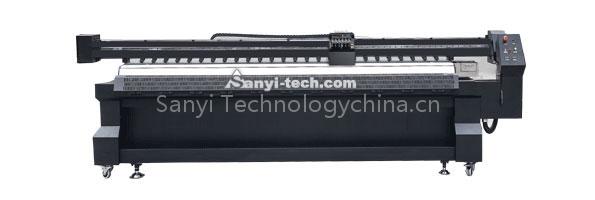

Seiko Simple Series (SPT510)

Model No.		SY-HS3204	SY-HS3206	SY-HS3208
Printhead	Type	Seiko Spt510 35pl
	Quantity	4	6	4 x 2
Resolution (dpi)		720dpi
Color		4 color	6 color	4 color
Speed	2 pass	60 sqm/h	60 sqm/h	80 sqm/h
	3 pass	48 sqm/h	48 sqm/h	68 sqm/h
	4 pass	36 sqm/h	36 sqm/h	56 sqm/h
Media	Width	3.2m
	Types	PVC Banner, Vinyl, Coating Film, Mesh, Fabrics, Backlit, One Way Vision etc.
Media Feeding		Automatic Media Feeding
Ink Supply		Negative Pressure Ink Supply System
Monitor System		Automatic Sense Lacking Ink System
Cleaning System		Automatic Cleaning System
Drying System		Pre/Post and Mid heater control by PID. Temperature adjustable.
Drying Fan		Extra drying fan with 3 section control
Environment		Temperature:20C-28C Humidity:40%-60%
Rip Software		Photoprint, Maintop, Wasatch (optional)
Printhead Height		2-4mm (adjustable)
Interface		High Speed PCI
Power		AC220V, 50HZ
Packing		L4660 x W960 x H1230mm / 420kg

<> High Resolution
Seiko SPT510 high resolution printhead
3D adjustable horizontal beam with silent linear guide and bearing
Wider platform stabilized ink positioning to maintain high resolution

<> New Innovation
Rigid CNC milled aluminum block print head mounting base
Chamfered print head mounting base avoid media scratch
Precise and easy adjustable for print head physical position and angle
New improved CNC milled aluminum capping block seal tightly print head
Optional 4 slant heads carriage assembly to reinforce hi-res and saturation
<> Multifunctional
The best new improved control boards to protect print heads
Convertible roll to roll flatbed printer
Front, middle and back heating system with PID temperature control unit.
Material feeding system with patented pressure bar to maintain long feeding

<> Easy Control
Imported negative pressure ink supply system
Photoprint / Maintop / Wasatch user friendly control console software
Built-in 6 independent algorithm for working voltage adjustment
PCI interface and fiber optical cable for volume data transferring
Optional semi-auto wiping system for print head
