Listing ID#10174871
ModelSK3208H SK3206H SK3204H
CategoryPrinting Machine

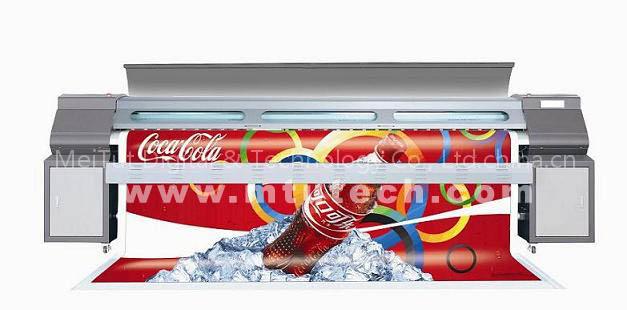

Seiko Heavy-Duty Solvent Printer
Specifications
- Origin
- China (Mainland)
Quick answer
Seiko Heavy-Duty Solvent Printer is a Printing Machine product. Key specs — Origin: China (Mainland).
Product Description
3.2m Series Solvent Printer:
| Model | SK3208H | SK3206H | SK3204H | |
| Print Head | Drop on demand Piezo Head(SPT510-35PL) 720dpi | |||
| Number of Print Head | 8 Heads(Double 4 Color) | 6 Heads (6 Color) | 4 Heads(4 Color) | |
| Maximum Print Width | 3,200mm(125.98â€) | |||
| Print Speed* | 96 m2/hr 3Pass | 49m2/hr 3Pass | 49m2/hr 3Pass | |
| 74 m2/hr 4Pass | 39m2/hr 4Pass | 39m2/hr 4Pass | ||
| 50 m2/hr 6Pass | 27m2/hr 6Pass | 27m2/hr 6Pass | ||
| 30 m2/hr 8Pass | 16m2/hr 8Pass | 14m2/hr 8Pass | ||
| Media | Max. width | 3,300mm(129.92') | ||
| Max. Weight | 90kg | |||
| Type | Frontlit,Backlit,Vinyl ,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper… | |||
| Thickness | 4mm(Max.) | |||
| Heating System | Pre/Post Heater, Cooling Fan System | |||
| Auto Media Feeding&Take-up System | Equipped | |||
| Ink | Type | Solvent, Eco-Solvent | ||
| Capacity | 1L or 5L per Color Main Tank | |||
| Auto Cleaning System | Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System | |||
| Print Interface | Optical Fiber | |||
| Power Specification | AC 220V/230V 50Hz/60Hz 2000W | |||
| Operational Environment | Temperature：20°C-28°C Humidity：40%-60% | |||
| Compatible RIP Software | Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maintop | |||
| Dimension&Weight | Machine | L4,440mm X W770mm X H1,280mm 430KG | ||
| Packing | L4,950mm X W920mm X H1,540mm 710KG | |||
| Model | SK2506H | SK2504H | |
| Print Head | Drop on demand Piezo Head(SPT510-35PL) 720dpi | ||
| Number of Print Head | 6 Heads( 6 Color) | 4 Heads(4 Color) | |
| Maximum Print Width | 2,500mm(98.42â€) | ||
| Print Speed | 44m2/hr 3Pass | 44m2/hr 3Pass | |
| 34m2/hr 4Pass | 34m2/hr 4Pass | ||
| 25m2/hr 6Pass | 25m2/hr 6Pass | ||
| 16m2/hr 8Pass | 16m2/hr 8Pass | ||
| Media | Max. width | 2,600mm(102.36') | |
| Max. Weight | 90kg | ||
| Type | Frontlit,Backlit,Vinyl ,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper… | ||
| Thickness | 4mm(Max.) | ||
| Heating System | Pre/Post Heater, Cooling Fan System | ||
| Auto Media Feeding&Take-up System | Equipped | ||
| Ink | Type | Solvent, Eco-Solvent | |
| Capacity | 1L or 5L per Color Main Tank | ||
| Auto Cleaning System | Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System | ||
| Print Interface | Optical Fiber | ||
| Power Specification | AC 220V/230V 50Hz/60Hz 2000W | ||
| Operational Environment | Temperature：20°C-28°C Humidity：40%-60% | ||
| Compatible RIP Software | Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maintop | ||
| Dimension&Weight | Machine | L3,740mm X W770mm X H1,280mm 350KG | |
| Packing | L3,890mm X W920mm X H1,540mm 560KG | ||
| Model | SK1806H | SK1804H | |
| Print Head | Drop on demand Piezo Head(SPT510-35PL) 720dpi | ||
| Number of Print Head | 6 Heads( 6 Color) | 4 Heads(4 Color) | |
| Maximum Print Width | 1,800mm(98.42â€) | ||
| Print Speed | 40m2/hr 3Pass | 40m2/hr 3Pass | |
| 31m2/hr 4Pass | 31m2/hr 4Pass | ||
| 21m2/hr 6Pass | 21m2/hr 6Pass | ||
| 12m2/hr 8Pass | 12m2/hr 8Pass | ||
| Media | Max. width | 1,900mm(74.80â€) | |
| Max. Weight | 90kg | ||
| Type | Frontlit,Backlit,Vinyl ,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper… | ||
| Thickness | 4mm(Max.) | ||
| Heating System | Pre/Post Heater, Cooling Fan System | ||
| Auto Media Feeding&Take-up System | Equipped | ||
| Ink | Type | Solvent, Eco-Solvent | |
| Capacity | 1L or 5L per Color Main Tank | ||
| Auto Cleaning System | Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System | ||
| Print Interface | Optical Fiber | ||
| Power Specification | AC 220V/230V 50Hz/60Hz 2000W | ||
| Operational Environment | Temperature：20°C-28°C Humidity：40%-60% | ||
| Compatible RIP Software | Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maintop | ||
| Dimension&Weight | Machine | L3,040mm X W770mm X H1,280mm 260KG | |
| Packing | L3,190mm X W920mm X H1,540mm 540KG | ||
