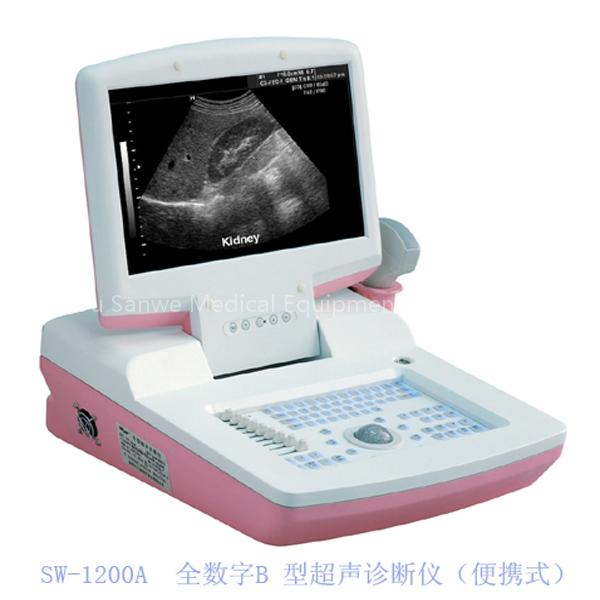

SW-1200 B mode ultrasound Scanner (Portable)

SW-1200B mode ultrasound Scanner (Portable) Technical Specifications:

Application:diagnosis of abdomen, heart, thyroid, liver, kidney, spleen, bladder and the field of OB/GYN Scanning depth (mm): ≥160 Depth Scope (mm):0~220 Resolution (mm):horizontal resolution ≤3 (depth≤80), ≤4 (80≤130); Vertical resolution ≤2(depth≤80), ≤3 (80≤130); Blind area (mm):≤5 Imaging Mode:B, B+B, 4B, B+M, M Grey scale:256 Dynamic range:64~96db Zoom:×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0, and selective amplification for 2 times in real time Cine loop:256-frame cine loop and 128-frame image storage; Electronic focusing:dynamic receiving focusing Frame correlation:4 segments frame correlation (B, B+B, 4B) Line correlation:4 segments line correlation (B, B+B, 4B) Dot correlation:4 segments dot correlation (B, B+B, 4B) Image turning:left/right reverse, black/white reverse, up/down reverse Measurement& calculation: distance, circumference, area, and heart rate OB/GYN software package (BPD, GS, CRL, FL, AC and embryo weight, automatically calculating the expected date of childbirth (EDC) and gestational weeks) Character input/display: time, date, patient’s ID, age, sex, panoramic word processing; Probe connector:12 Body marks:16

Color:b/w, pseudo color Standard Configuration Main unit R60 3.5MHz convex probe 12″LCD high resolution monitor Options High-frequency linear probe (5.0MHz, 7.5 MHz) Trans-vaginal probe (5.0MHz, 6.5 MHz) Imaging workstation Others

Power supply: AC 100V~130V/220V~240V, 50/60Hz

Dimensions: 360mm(L)×475mm(W)×150mm(H) Net weight: 7 Kg
