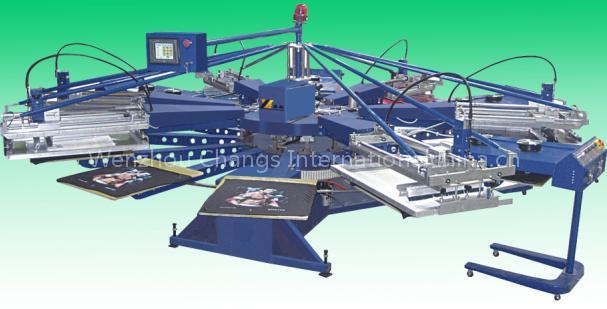

SPP Series Automatic T-shirt Screen Printer

SPP Series Automatic T-shirt Screen Printer DESCRIPTION TOUCH SCREEN CONTROL CENTER 1, Full colored display gives a vividly visual guide 2, an independent print start & print end setting that automatically stop working when reaching to the preset production data 3, In-line self-diagnostic and alarming system 4, Multiple (1-50) print stroke capability in each print head 5, Real-time production data 6, Zero position control 7, Test print setting turns individual printheads off/on during test print cycle 8, Loading time and flash curing dwell time control 9, Three curing zones in each in-line cure unit can be setted independently 10, Built-in UBS port for future software upgrades 11, Job memory features technical parameters restoration, making repeat production a breeze TURNTBLE/INDEXER 1, Servo drive combines higher print speeds with superior smoothness, consistency, and longevity 2, Precise four-point pallet leveling system 6, Unique pallet locator speeds up pallet changover SAFETY SYSTEM 1, Safety cords between print heads and four safety bars installed on load/unload stations ambience eliminate any trip-in accident 2, Hundredth of a second indexer stop trigger time offers a strong safety guarantee PRINT FRAME 1, Visual reference marks every 1 degree (0-30 degree range) simplify squeegee/floodbar angle adjustment 2, Easy changeover for squeegee/floodbar 3, Availability for flock print 4, Calibrated front & rear stroke length with tool-free adjustment maximizes print flexibility.

5, Print and flood speed control, pneumatic screen frame clamping, left-and-right indexing, lifting and lowing action, print and flood holders displacement are incorporated into one membrane control panel in each print head, minimizing the setup time 6, Print/flood pressure adjustable PARAMETERS Modle SPP

Print Color/Position 4-12

Max Print Size 500*600/mm

Max Air Consumption 10 CFM

Output 600pcs/h

Total Power 2.5Kw

Overall Dimension 4500*1560/mm
