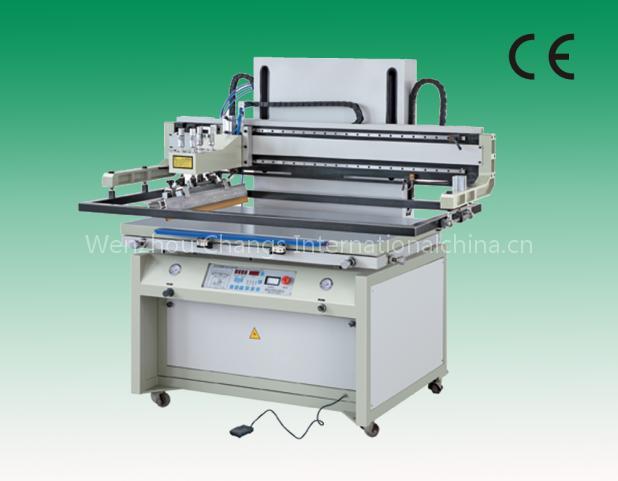

SFB Screen Printer

DESCRIPTION SFB series apply to wide range of packaging industry, such as box decorating fields for makeup, wine, gift, calendar adhesives, and even credit cards etc. It features AC motor-driven printing and lift-up/lift-down for the print arm, speed adjusted b high precision frequency converter.

Most importantly, the combination of squeegee and flood bar speed and substrate thickness adjustment can be incorported into one machine. In addition, the pallet allows for up-and-down, left-and-right, front-and-back tuning to the superior registration. It is also equipped with the excellent safety system when printing.

FEATURES 1, Microcomputer fault with that plan, facilitates future maintenance machines. 2, Four-cylinder printing, printing effect to the average pressure, a clear line network. 3, A two-state adaptive systems, adjustment is simple, accurate positioning. 4, A printing, printing ink and to be independent governor can adapt to a variety of printing plane.

5, Crank-driven printing itinerary. TECHNICAL PARAMTERS Model SFB-4060 SFB-6090

Max. Printing Dimension 400×600mm 600×900mm

Max. Dimensions 700×800mm 850×1100mm

Dimensions of Workbench 600×700mm 800×1000mm

Electrical requirements 3ph,50/60Hz,380V 3ph,50/60Hz,380V

Total power 2.25Kw 2.95Kw

Printing Speed 1300t/h 1200t/h

Machine Size 1600×870×1250mm 1900×1700×1300mm
