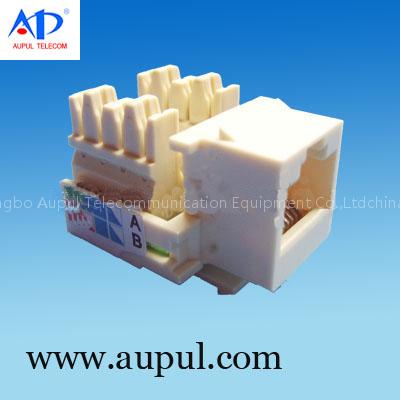

RJ45 Keystone Jack

RJ 45 Keystone Jack. &nbsp 1. Specifications: &nbsp rj45 Jack 1. Two PCB , Gold-plated 3 - 50 U 2. OEW & Fluke tester 1800 3.Match with Patch Panel &nbsp 2. Performance: &nbsp 1. Fluke test(1800) 2.Insertion time: 1500 mating cycles 3. IDC Contact: 300 times min 4.

Special Dual-PCB design, extremely low attenuation and high return loss, one PCB with 2 layers &nbsp 3. Material: &nbsp 1. Housing; High-impact PC. 2. IDC Contact : Environmental Phosphor Bronze with gold-plated 30U. &nbsp 4. Installment: &nbsp Apply to the connection of the communication sockets between equipment room and workaround.

Meet or exceed CAT.6A T568A and T568B ( Termination requirement) Rear round locked design products the wires from the excessive bending or droping and meanwhile protect the contact.

Insulation strength: under normal atmospheric, the insulation resistance is more than 1000 MO Dielectric strength when DC 1000V ( or AV 700V ) is applied, there is no evidence arc and spark-over for 1 minuters Accept 22-26 AWG solid with a insulation diameter 0.4-0.6mm. &nbsp 5. Certificate: &nbsp ISO9001 &nbsp 6.

Package: &nbsp NO: Specification Bag Box Carton G.W

AP - FA6 - 7035 Cat 5e Keystone Jack 1 pc / Bag 50 pc / Box 1000 / Carton 18 KG

.
