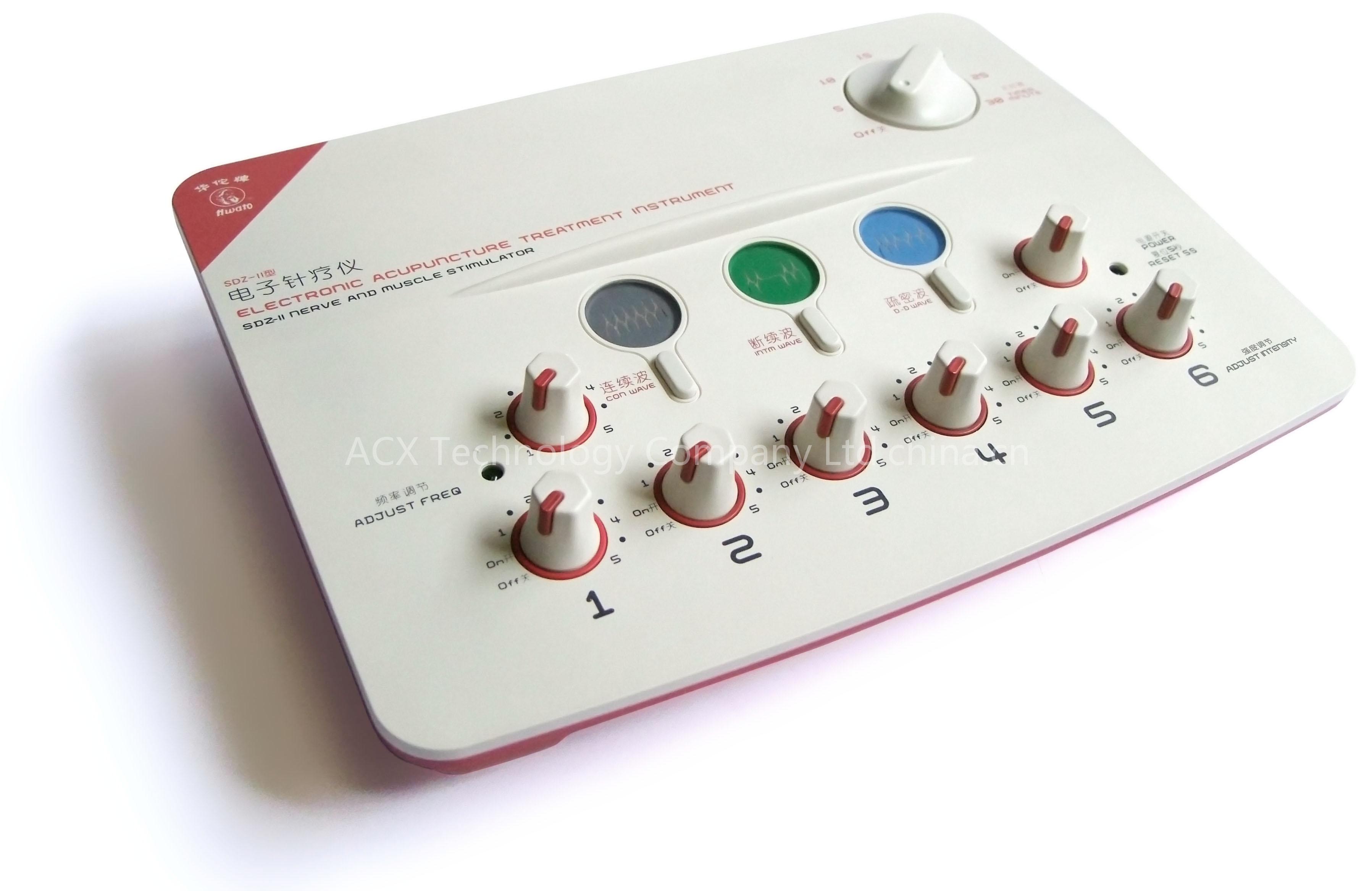

Nerve and Muscle Stimulator SDZ-II New

Nerve and Muscle Stimulator SDZ-II - New model
Product Description

Features include:
Six (6) output channels
New IC circuity, no cross over, no interference.
Continuous, intermittent, and dense-disperse (modulated) wave forms
Adjustable frequency : 1 ~ 100 Hz
Durable alligator clip wires
Timer 0 ~ 60 minutes
Output safety alert - all outputs must be turned off before power on the unit.

Technical Specifications:
Channel 6 outputs
Output Pulse Amplitude 0 ~ 50V (on 500 ohm load), adjustable
Pulse frequency Continuous wave : 1 ~ 100 Hz, adjustable

Intermittent wave: continuous wave
Frequency adjustable in 1~100 Hz, break-wave time is 5 seconds, continuous
Wave time is 15 seconds.
Dense-disperse wave: spacing wave frequency is 1/5 of density frequency,
Density wave frequency adjustable in 5~100 Hz.
Pulse width 1 ms
Pulse wave un-symmetry two-direction pulse wave.
Wave form adjustable, dense-disperse, and intermittent
Power Source DC 9V (CR14, UM2), or AC adaptor
Output Jack 3.5 mm diameter jack

Accessories:

• 6 pieces of output electrode wires
• 6 pairs of self-adhesive electrode ( size: 50mm X 50mm )
• 6 pairs of Filiform needle-electrode (Metal Clamps), ( size: < or = 28mm)
• 1 English-Chinese User Manual
• 1 certificate of product quality conformity
• 1 foam box against shock.
