Ncomputing, Expanion, Xtenda X300, Nstation,Xtenda

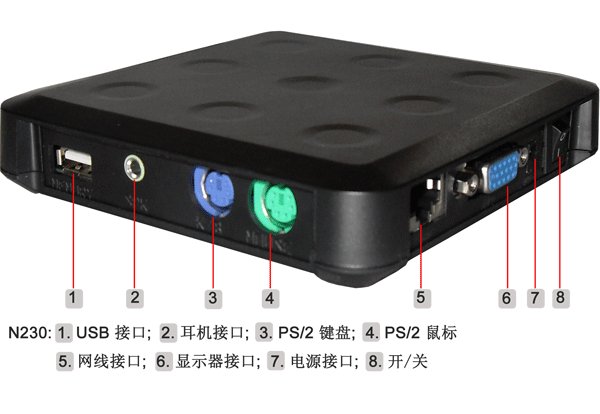

If you have many users work more than 10 meters away from the shared PC, and want to use USB flash driver or other USB products, select ncomputing N230. Ncomputing N230 connects across a standard Ethernet local-area network, they just snap into place and can be just about as far away from the shared computer as you like.

Ncomputing N230 virtual desktops share the excess power of standard PCs and make computing simple and affordable. You save money by sharing the cost of a single PC among multiple users. And your users feel like they each have their own PC while they simultaneously share common applications—including web browsers, e-mail, office suites, and multimedia. Every user has their own keyboard, screen, settings, applications, and data files, so their experience is just like it would be if they were working at an independent PC.

Save money, time, and aggravation

. Efficiently share one PC with up to 30 users

. Dramatically reduce acquisition & support costs

. Easy to set up, maintain, and secure

. Flexible Ethernet networking

. Supports Windows and Linux

. Compact and reliable

. Energy-efficient (under 5 watts per user)

Specification

Size: Access Device: 115*115 *26 mm; Shipping Size: 235*145*40mm

Weight: Net Weight: 154g; Shipping weight (includes power adapter, packaging, documentation, etc.): 0.56 kg

Power Supply: Input: 100-250 VAC, 50-60 Hz; Output: 5 VDC, 2 A; Nominal consumption: 5 Watts

LED Indicators: Power: connection to power supply, LAN: network activity, Ready: device status

Connection to Host PC: Via 100 Mb/s switched Ethernet connection

Video Resolution: 640x480, 800x600, 1024x768 (at 60 or 75 Hz refresh rate), 1280x1024 (~63 Hz). All feature up to 16-bit color support.

Audio: Stereo output via speaker port

Internal Hardware: All solid-state design. No moving parts, no fans, no local user storage. Network PC Station System-on-Chip with embedded Network PC Station operating firmware (no local user OS).

Reliability (MTBF): >>100,000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40°C)

HW Security: No local user storage

Max # Users Per PC: 30 users when using a server host OS (i.e. Windows Server 2003)

10 users when using a desktop OS (i.e. Windows XP)

User Software: PC Station terminal services software

Supported OS: Microsoft: Windows XP Professional and Media Center Edition 2005

Windows Server 2003, Small Business Server 2003

Linux: several variants (refer to support section of Website for latest supported revisions of Linux)

Kit Contents: PC STATIONS Kit includes access terminal, power supply, software installation & user’s guide and other peripherals are NOT included and must be purchased separately.
