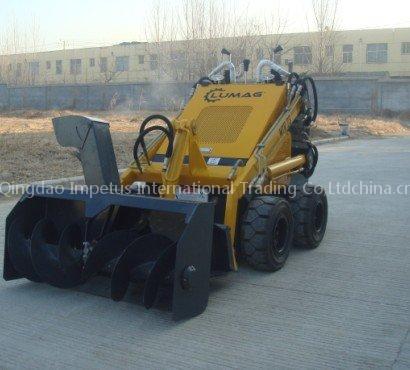

Mini skid steer loader
Specifications
- Brand
- Impetus
- Origin
- China
Mini skid steer loader is a Other Construction Machinery product. Key specs — Brand: Impetus; Origin: China.
Product Description
Item | SL380 | |||
Engine | rated power (Kw) | 14.9kw American Kohler Engine | ||
Rotating Speed (rpm) | 3600 | |||
Noise | below 85db | |||
Hydraulic System | Cycle Time (s) | Raise | Dump | Lower |
4.27 | 1.34 | 3.31 | ||
Performance | Operating Load (kg) | 380 | ||
Bucket Capacity (m ) | 0.2 | |||
Max lifting force (kg) | 735 | |||
Speed (Km/h) | 0-0.5 | |||
operating weight with standard bucket (kg) | 900 | |||
Tyre | 16x2-8 | |||
Item | SL380 | Item | SL380 |
Max. height(mm) | 2182 | overall length to outside of tyre(mm) | 980 |
Dump height(mm) | 1430 | Ground clearance(mm) | 136 |
height to top of cab(mm) | 1175 | clearance circuit front(mm) | 1270 |
overall length with bucket(mm) | 2035 | Dump angle at max height(°) | 39° |
Dump distance(mm) | 185 | Max attachment rollback when bucket on ground | 27° |
overall length without bucket(mm) | 1695 | ||
Bucket width(mm) | 924 |
