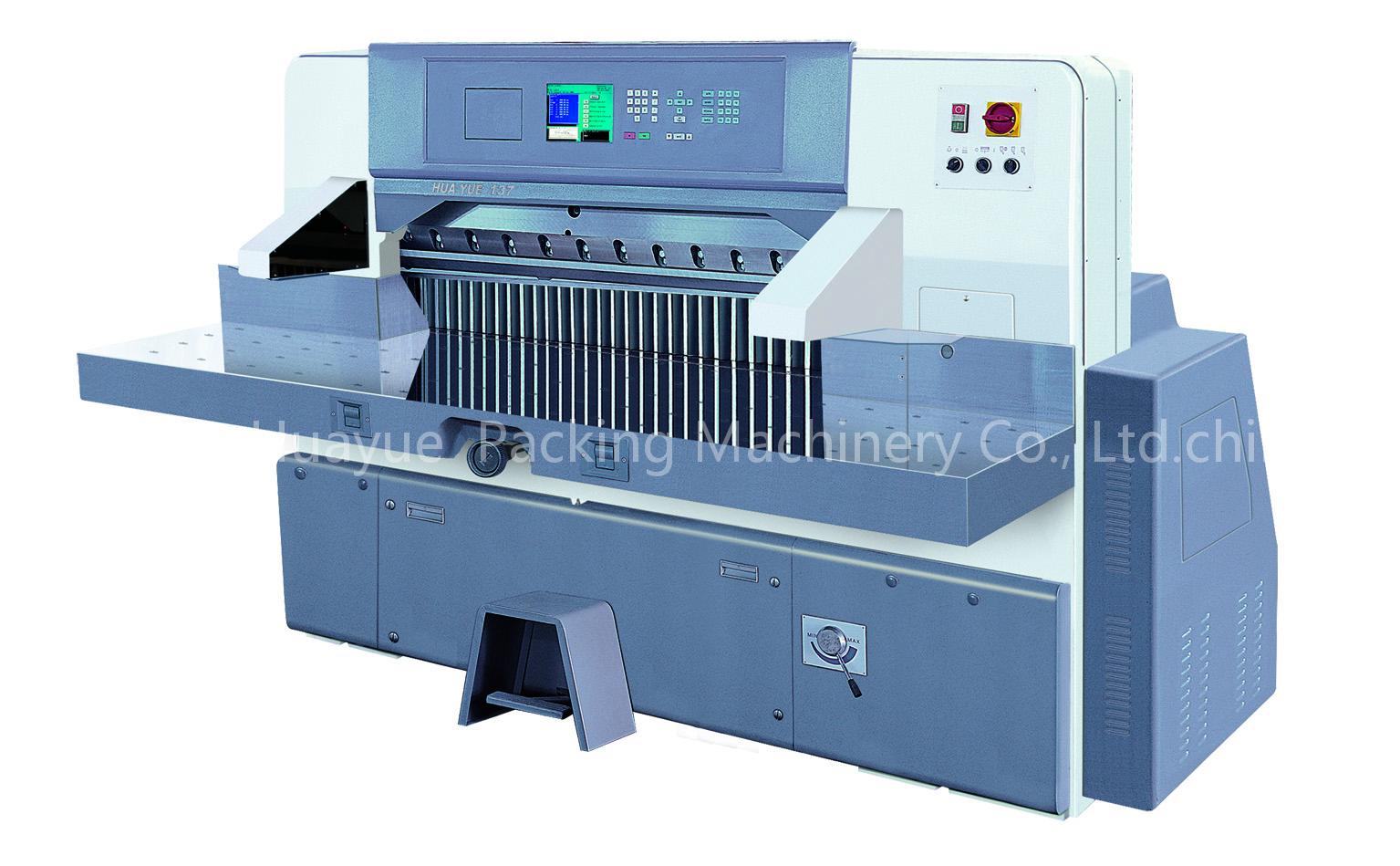

M10 Series Program Control Paper Cutter

This series of machine are featured by firm structure, beautiful modeling. Its parts are standard and interchangeable. The backgauge is LED by single linear guide and driven by roller ball leadscrew. The repeat allocation precision is less than 0.025mm. The surface of worktable and all the side baffle plates are plated chromium to improve the worktable precision and surface quality. It is installed the air cushion. It is convenient to send paper and allocation is accurate. Adopt big specification auxiliary small worktable to improve the operation place.

The hydraulic system is from Germany WESSEL company, double hydraulic control structure and ISO approved hydraulic element. The mechanism of the inner electronic knife lock prevent sliding cutting and continuous cutting for some deviant factors. Cutting control adopts double hands operation, and owns single cutting function. Installed the photoelectric protection device, overload protection device, portable changing blade device and full closed protective cover. All the caution and indication scutcheon prompt operator safety and to process maintenance. Main electronic units are from German SIMENS, French TE and Japanese ORMON famous international brand.

Adopt original import computer control system ( American C&P Corp. ), with 10.4" color LCD, 250000 programs, max. Backgauge speed is 16m/min, with self-diagnosis function. It is available in eleven languages. System configuring precision is by 0.01mm. The position accuracy is 0.025mm.
