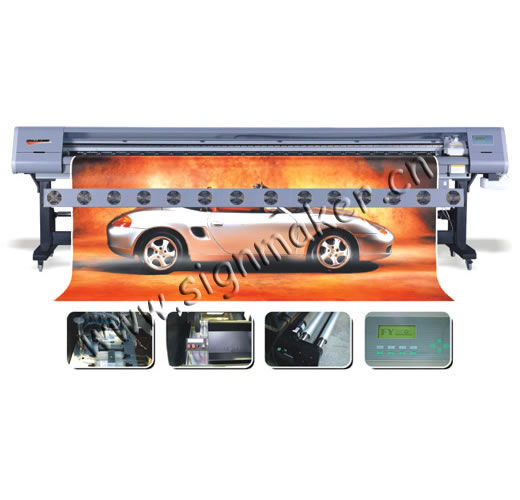

Large Format Printer(INFINITY FY-33VB)
Listing ID#10174840
ModelFy-33VB
CategoryPrinting Machine
Printing Machine

Large Format Printer(INFINITY FY-33VB)

Specifications

Origin
China
Request Quote
Quick answer

Large Format Printer(INFINITY FY-33VB) is a Printing Machine product. Key specs — Origin: China.

Product Description

1) Model : FY-33VB 2)Printhead : On-demand Piezo Head, XAARXJ128 3)Number of Printhead : 4 heads 8 heads 12 heads 16 heads 4)Maximum Print

Width : 3200MM(125.98inch) 5)Print Speed a)Draft : 15.10m2/hr 30.20m2/hr 45.30m2/hr 60.40m2/hr b)

Standard : 10.00m2/hr 20.10m2/hr 30.15m2/hr 40.20m2/hr c)High Quality : 7.50m2/hr 15.00m2/hr 22.50m2/hr 30.00m2/hr 6)Ink a)

Type : Solvent Ink b)

Color : Cyan, Magenta, Yellow, Black c)

Capacity : 1000ml Per Main Tank lf Each Color d)Ink Supply System : Low Ink Detector, Auto or Manual Ink Supply System 7)Media a)

Width : 3300mm (129.92inch) b)

Type : Vinyl, Window Film, Polyester, Flex, etc 8)Auto Media Feeding System : Equipped(Take-up System Optional) 9)Auto Cleaning System a)Positive & Negative Pressure Cleaning(Vacuum Cleaner Optional) b)Anti-clogged Flash Function 10)Pre-heater& Dry System : Equipped (Fan Optional) 11)Clamp : Equipped 12)Print Interface : USB2.0 or High Speed to Printing Interface Card 13)Printhead

Height : 2 to 4mm Above Media Adjustable 14)RIP Software : INFINITI RIP or Others 15)

Power supply : 100-240V,50Hz/60Hz 16)Machine

Dimension : L4405mm*W875mm*H1250mm 17)Package

Dimension : L4700mm*W890mm*H1420mm
