Listing ID#10150846
ModelLN918
CategoryOther Construction Machinery

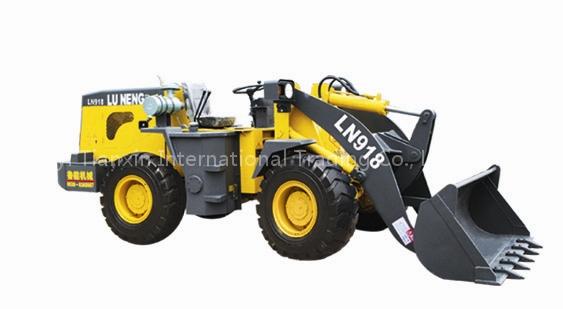

LN918 LOWER COAL SEAM WHEEL LOADER
Specifications
- Origin
- china
Quick answer
LN918 LOWER COAL SEAM WHEEL LOADER is a Other Construction Machinery product. Key specs — Origin: china.
Product Description
Rated weight (kg) | 1800kg |
Rated capacity (mз) | 0.9 mз |
Max breakout force (KN) | 46KN |
Max drawing force (KN) | 35KN |
height (mm) | 2600mm |
reach (mm) | 910mm |
Min turning radius (mm) | 4120mm |
Lifting time (s) | ≤4.5s |
Total cycle time (s) | ≤9s |
Engine | 4100G |
Rated power (KW) | 50KW |
Rated speed(rpm) | 2400r/min |
| Tread (mm) | 1460mm |
| Wheel base (mm) | 2095mm |
Transmission system type | Static hydraulic-mechanical type |
Steering system | load sensing, prior steering |
Overall dimensions(mm) | 5520×1950×2600mm |
Operating weight (kg) | 4800kg |
