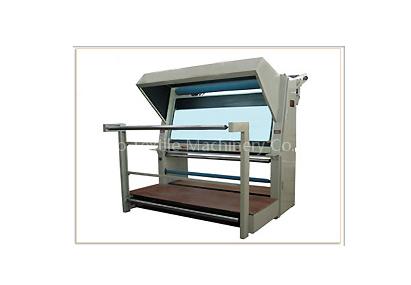

Inspection Machine,fabric doubling machine (N801B-E)

PURPOSE:N801B-E INSPECTING MACHINE is applicable mainly in the finishing workshops in cotton weaving, printing-dyeing and knitting mills to inspect the fabrics, timely discover and cirrect defects on them, classify them in proper order and measure the length of the fabrics precisely. SPECIFICATIONS:Model No. N801B-E-180 N801B-E-240

Inspecting width 1800mm 2400mm

Inspecting speed 3-30m/min (stepless)

Measuring error ≤0.4%

Dimensions (L×W×H) 2500×3200×2450mm 3100×3200×2450mm

Weight 700kg 900kg

Note: Working width up to 4000mm

FEATURES:◆ Imported FC for infinite speed adjustment.◆ Imported length counter or adjustable electronic length counter (to count in meter and yard, fix and totalize the length as display the speed of inspecting). Inside and outside lighting for different working places.◆ Fabric can be inspected forward or backward.
