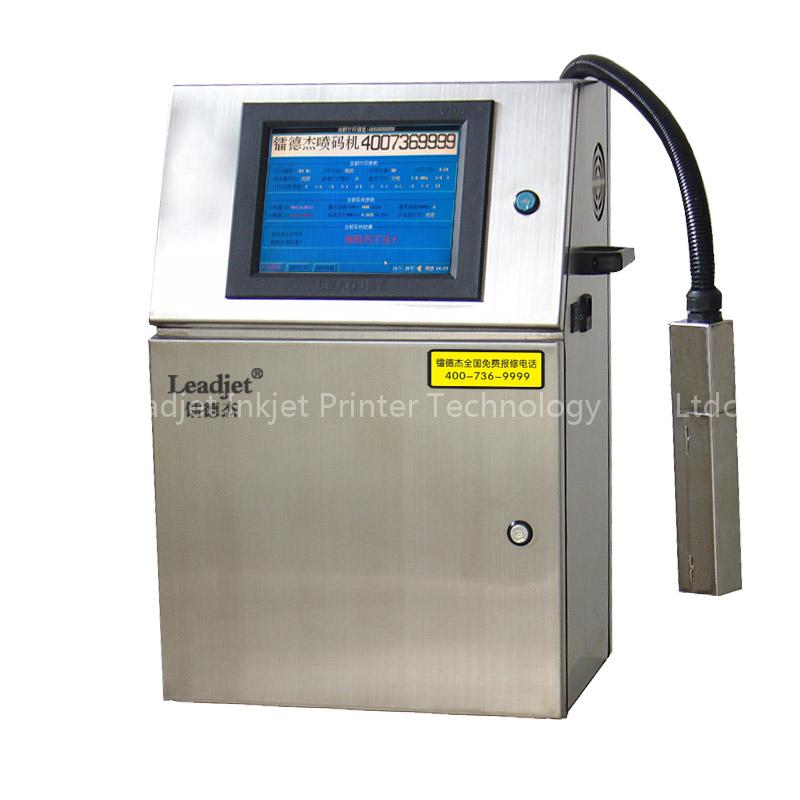

Industrial Inkjet Printer V98
Listing ID#10211749
ModelV98
CategoryPrinting Machine
Printing Machine

Industrial Inkjet Printer V98

Specifications

Origin
China
Price Term
FOB
Request Quote
Quick answer

Industrial Inkjet Printer V98 is a Printing Machine product. Key specs — Origin: China; Price Term: FOB.

Product Description

FEATURE
Quick-dry balck ink used industrial non-contact small character inkjet printers
Print consistently high quality images even on structured and uneven surfaces
Print features include text, date, time, batch numbers, logo and trademark
Easy to be integrated at any position of the production line
User friendly interface and most reliable ink system
32 bit embeded CPU, large memory, and the 8.4'' TFT bright clear touch screen
Configure RS232 and USB communication interface, can upgrade the software.
Multitask system, printing and editting at the same time
APPLICATIONS
Automobile part, Foods, Beverages, Cosmetics, Electronic Component, Pharmaceutical
Stone, Wooden, products, Eggs, Pipes and Tubes, Cables and Wires etc.
HYDRAULIC SYSTEM
Full automatic viscosity control and pressure control
Diaphragm pumps with reliability, longer life, low maintenance cost than gear pump
Electronic control system completely separated design from hydraulic system
PRINT HEAD
Compatible design, maintenance friendly
Automatic ink stream on when start up and ink stream suck back when turn off
Nozzle size: 58 μm standard, 52 to 65 μm optional
Easily accessible and can be installed in any position
Distance from print head to print surface 1mm~30mm

TECHNICAL SPECIFICATION
Print Lines 1-5 lines (5 x 5 dots)
Dot Matrix figure and letter 5 x 5, 5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16, 24 x 24, and user-defined in 32 x 32
Memory 1000 message, 1000 graphics
Print Speed 1,400 character per second (5 x 7 dots)
Letter Height 1-20mm
Operating Interface Chinese, English
Print Objects English chracter, Arabic number, date, time, batch numbers, and logo, trademark, text
Material metal, plastic, glass, woode, tubing, electrical wire, cable etc
Font Width up to 9 times
Nozzle Connection Tube 3M
Ink Color black, blue,red etc
Consumption of Ink 70 millions character per litre
Operating Environment 5-45 degree centigrade, below 90%(humidity)
Power Source AC220V / 380V 50HZ 100AV
