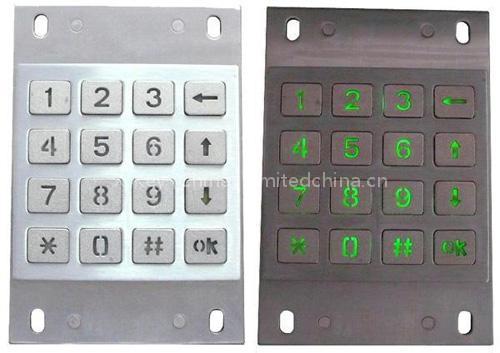

IP65 vandalproof metal numeric keypad

DESCRIPTION:16 keys compact format vandal-proof IP65 stainless steel keypad with gold-on-gold key switch technology for accurate data input,with rear panel mounting solution.

MODEL NO.: X-KN161B

DIMENSIONS: 100.0mm x 91.5mm(front panel)

MODEL NO.: X-KN162B

DIMENSIONS: 160.0mm x 102.3mm(front panel)

MODEL NO.: X-KN163B (with backlight)

DIMENSIONS: 100.0mm x 91.5mm(front panel)

MAIN FEATURE

1.Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.

2.key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.

3.Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.

4.Easily mounting into enclosure or panel, and is provided with PS/2, USB or RS232, connection output cables that plug directly into the host computer for keypad operations.

5.OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX

COMMUNICATION PARAMETER.

1.Standard PC/AT keyboard interface

2.16 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, ., Exit, P-Up, P-Down, Enter, Clear, 4 x 4 scanning code. Any keys can be re-defined per customers' requirements.

3.8 functional keys: F5, F10, F11, F12 and up/down/right/left arrows (optional)

MECHANICAL DATA

1.Key: 16 keys, SUS304 brushed stainless steel

2.Key top style: Plain/Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

3.Key travel: 0.45mm

4.Front Plate: Super quality brushed stainless steel

5.Actuator/keys materials: stainless steel

6.Dimensions: 100.0mm x 91.4mm (front panel)(X-KN161B), 160.0mm x 102.3mm(front panel)(X-KN162B), 100.0mm x 91.4mm (front panel)(X-KN163B),

7.G.W.: 1.0KGs (X-KN161B), 1.2KGs (X-KN162B), 1.0KGs (X-KN163B)

ELECTRICAL DATA

1.Power supply voltage: 5V DC.

2.Power Consumption: Under 30mA for operation

3.Communication interface: PS2, USB or RS232 are all available.

ENVIRONMENTAL ADAPTABILITY

1.Operating temperature:-20C to +60C.

2.Storage temperature: -30C to +70C.

3.Operating RH: 30-90%.

4.Atmospheric pressure: 60-106Kpa.

RELIABILITY

1.RoHS Compliant, CE and FCC

2.Protection Level: IP65(front panel dynamic)

3.Vandal resistant IK10

4.MTBF >50000H.

5.MTTR <30min.
