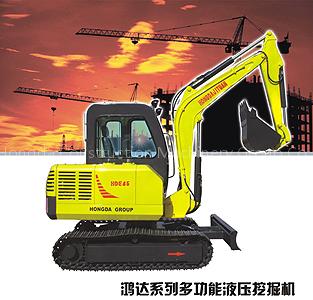

Hongda multi-functional hydraulic excavator

Module:HDE18,HDE30,HDE45,HDE60,HDE85

Hongda HDE85 multi functional dydraulic excavator technical parameters:

Operation weight(kg)8200

Standard capacity(m3):0.28

Rated power:

Fuel tank volume(L)150

Hydraulic oil tank volume(L):130

Max digging depth(mm)4062

Max. discharge height(mm):5191

Max.digging height(mm):7243

Max.digging diameter(mm)6392

Max.ground digging diameter(mm):6208

Main system:

Power system:Equipped with the engineering diesel engine tailor made for excavators,Hongda Series of small hydraulic excavators have stable performance,strong power and classic configuration .They are equipped with famous brand diesel engines made in China or world famous diesel engines imported with original packaging.

Hydraulic system:Equipped with the world's top class hydraulic pump ,main valve,traveling motor and slewing motor,the hydraulic system shows good quality and stable performance,which enables the whole with the constant power variable control and the flow limiter control trough a third pump(gear pump),which gives full play the engine power.
