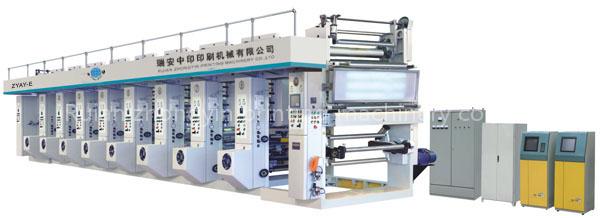

High speed Gravure printing machine
Listing ID#10211871
CategoryPrinting Machine
Printing Machine

High speed Gravure printing machine

Specifications

Origin
China (Mainland)
Request Quote
Quick answer

High speed Gravure printing machine is a Printing Machine product. Key specs — Origin: China (Mainland).

Product Description

Application:

This machine is ideai for printing film of BOPP , PET , PVC ,PE , NY and paper ,it prints continuousiy for multiple colors

Features:
Unwind and rewind unit adopt turning frame
Air shaft is for loading ,pre-driving of waiting roller before roll exchange and web splicing without stop the machine
Tension control system:PLC+sevem sets of vector frequency inverter motor+dancing roller device
Four stage tension:unwind,infeed,outfeed,rewind
Parameters and machine running condition are display by touch screen
Preheating decive isattached before printing
Saft-less cylinder for rapid plate cylinder exchange
Automatic speed up/down to the target speed gradually ,impression rubber roller can impress automatically in order,easy to operate
The auto ink circulation sysrem is a standard accessory
Double shaft multi direction adjustable doctor blade is controlled by pneumatic parts
Ink transfer roller to prevent ink splash for high speed running
Pneumatically oper./close cabinet with guide way and trolley
The film drying system use infrared heating device for constant temperature control and air exhausting device available
Heating mode:electrical heating or oil heating
Up/down (vertical)color control system (vertical&horizontal color control system is for choice)
Web video is a standard accessory
Optional device:reverse printing structure ,ink viscosity control device ,unwind EPC device

Machine type
Coler quantity
Material type
µm
12-60µm
35-100µm
25-60µm
35-65µm
12-50µm
Copper paper30-120g/m2
Max.Mechanical speed170m/min
Max.printing speed150m/min
Max.Rainting speed1050mm
Max.printing width1020mm
Core plate cylinder¢76mm
Length of plate cylindermm
plate cylinder¢120¢270mm
of unwind&rewind¢800mm
Tension setting range3-30kgf
Auto color control precision≤3%
Color control precision±0.10mm
Pneumatic source0.6mpa
Impression roller pressure370kgf(full load)
Doctor blade pressure10-110kgf
Doctor blade transverse move range±4-10mm
Chilly water5T/h(2kg/cm2)
Electrical heating power234kw
Total power consumption320kw
Machine weight42500kg
Machine size18000(L)*4800(w)*2800(H)
