Listing ID#10223003
ModelDF
CategoryMachinery
Quick answer

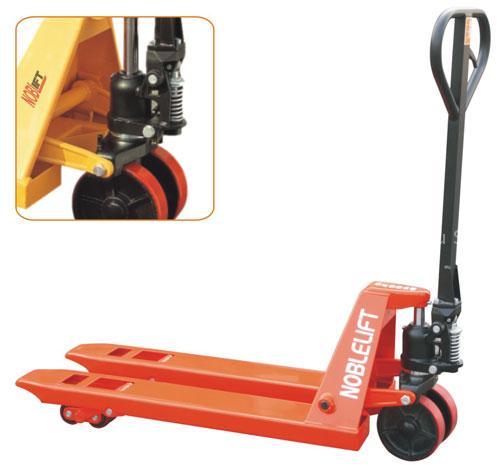

Hand Pallet Truck DF is a Machinery product. Key specs — Brand: Cheuklift; Origin: CHINA.
Product Description
| 1KG=2.2LB1INCH=25.4MM | ||||||||
| Item/Type | DF18 | DF20 | DF25 | DF30 | ||||
| CapacityQ | kg | 1800 | 2000 | 2500 | 3000 | |||
| Min.forkheighth | mm | 85 | 85 | 75 | 85 | 75 | 85 | 75 |
| Max.forkheighth1 | mm | 200 | 200 | 190 | 200 | 190 | 200 | 190 |
| Steeringwheel | mm | Φ200x50 | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 |
| LoadrollerSingle | mm | Φ80x93 | Φ80x93 | Φ74x93 | Φ80x93 | Φ74x93 | Φ80x93 | Φ74x93 |
| LoadrollerTandem | mm | Φ80x70 | Φ80x70 | Φ74x70 | Φ80x70 | Φ74x70 | Φ80x70 | Φ74x70 |
| Sizeofforke*s | mm | 160x60 | ||||||
| WidthoverallforksB | mm | 450/520/550/685 | ||||||
| ForklengthI | mm | 800/900/1000/1100/1150/1220 | ||||||
