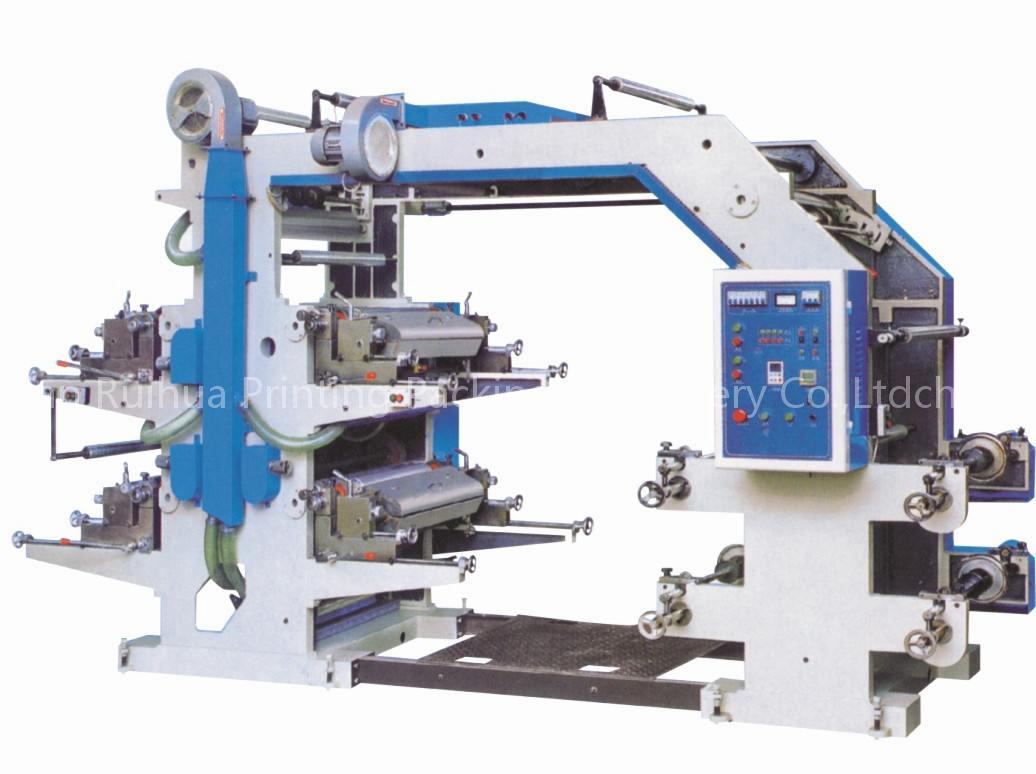

Flexible Letter Printing Machine

Name: Four Color Flexible Letter Printing Machine(YT-4600/4800/41000)
Use:
This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Characteristics:
1. Easy operation, flexible starting, accurate colour register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.3600 continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main Technical Variables:
Model of Machine	YT-4600	YT-4800	YT-41000
Max. Width of PrintingMaterial	600mm	800mm	1000mm
Max. Printing Width	560mm	760mm	960mm
Length Range of Printed Product(mm)	191-914	191-914	191-914
Max. Diameter of Roll Material	Φ 450mm	Φ 450mm	Φ 450mm
Printing Speed	5-50m/min	5-50m/min	5-50m/min
Thickness of plate(Including Two-sided Glue Paper)	2.38mm	2.38mm	2.38mm
Total Power	19kw	25kw	30kw
Weight of Machine	3000kg	3500kg	4000kg
Overall(mm)Dimensions	4200X1600X2400	4200X1800X2400	4200X2000X2400
