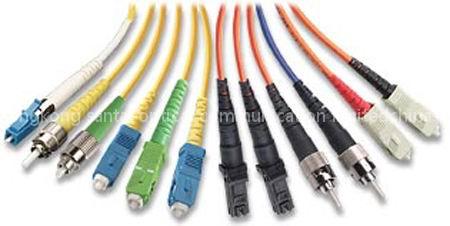

Fiber optic patch cord is a Telecom Parts product. Key specs — Origin: Shenzhen.
Product Description
Fiber Optic Patch Cord SC FC ST LCFiber optic patch cord with SC connectors SM duplex PC, UPC or APC polishing Single mode fiber: ITU - T G. 652 D Multi mode fiber: ITU - T G.
651 Standard: Telcordia GR-326-CORE Standard housing, ceramic ferrule Cable diameter: 2.0mm or 3.0mm or 0.9mm Fiber diameter: 9/125μm, 62.5/125μm or 50/125μm Insertion loss: SM Less than 0.3 dB MM Less than 0.3dB Return loss: PC SM larger than 45 dB UPC SM larger than 50dB APC SM larger than 60dB UPC MM larger than 20dB Repeatability: Less than 0.2 dB Changeability: Less than 0.1 dB Operating temperature range: -40 ~ 80Storage temperature range: -40 ~ 80Tensile strenth: 10N Min.
Bending radius: 35mm
