Fiber Optic Terminal Box is a Telecom Parts product. Key specs — Origin: China (Mainland).
Product Description

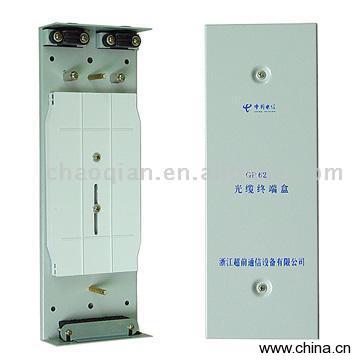

Model No.:GP62N-II Product Origin:China Brand Name:CHAOQIAN Price Terms: Payment Terms:T/T Certification:ISO9001 Description:The optical cable terminal boxes GP62 and GP62A developed by our company are used for the protective connection between indoor optical fiber and pigtail; which have obtained "The Communication Equipment Access License" issued by National Information Industry Department in April 2001 and has passed the certificate issued by TL certificate center on 28th, October, 2005 (No.030054690994R0M) 1.
Products classification: indoor type and outdoor type2.
Products component: crust, inner components, fiber connecting protectorInner components: a. bracket: supporting the inner structureb. fiber splice tray: keeping fiber connectors, protectors and spare fibersc. fixing device: fixing fiber cable jacket, reinforced core and distribution pigtailThe heat shrink protective tube is used to protect fiber connectorFeatures and advantages:The body is plastic spreading: even color, little in size and elegant, easy for operationIn the form of pothook, convenient for loading and unloadingThe splice tray is in the form of pile upon pile, easy for overturning; the curvature radius of the entwined spare fibers exceeds 37.5mmUnique structure, reasonable layout, enough room for operation, the max capacity being 96 coresInlet and outlet of the fibers is equipped with adjustable clamping seal ring and reinforced device, which can be adjusted according to the size of the fiber until it is fastenedThe outdoor type is of good sealing performance, which can avoid leakage effectivelyProducts within 96 cores can be sent to our company to update at any time; good quality but cheap, widely favorable to clientsEnvironment: 1) Environmental temperature: -25 - 55°C 2) Relative humidity: below 85% (when the temperature is below 30°C) 3) Atmospheric pressure: 70 - 106kPa Main technical indexes: 1) Insulation resistance: ≥2 x 10, 000mΩ/500V DC 2) Voltage strength: non-puncture, no arc-over under 15kV DC/1minPacking: Carton
