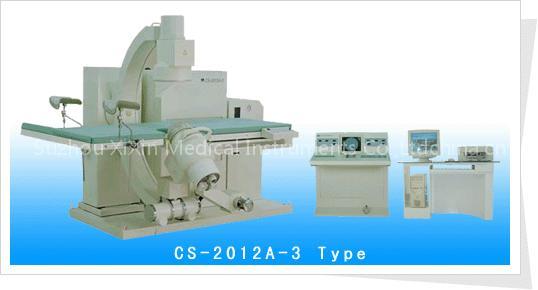

Electromagnetic ESWL Lithotripter with x-ray

1,Advanced shock wave generator systems : In cooperation with Stuttgart University in German, a self-focusing electromagnetic shock wave generator systems with Wide Focus and Low Pressure has been used in the device, lessening energy loss.2,Acurate Double Localization: With x-ray , Ultrasound localization becomeseasier.

3,Longer therapy depth:With a 145mm therapy depth ,the treatment of the Obesity becomes more convenient. 4,Wider focus:A wider focus(18x180mm, 30.5 cu mm)covers greater stone and fragments and makes the breakage more efficient. 5,Lower pressure: Under the range of 7.0-10.5KV,one can feel less pain or even painless.

6,Turbulent degassing cooler system:With the system reducing the cost of consumables, the device becomesmore durable. Range of discharge Voltage 7.0~10.5kV

Discharge energy 50~100J

Therapy distance 145mm

Focus area cross section D ~±10mm

Axial extent ~60mm

Triggering mode manual, auto, respiration, ECG

Lifetime of the coil 1000000times

Therapy table movement 3D

Extent of therapy table movements 100mm in Y direction 140mm in Z direction 100mm in X direction
