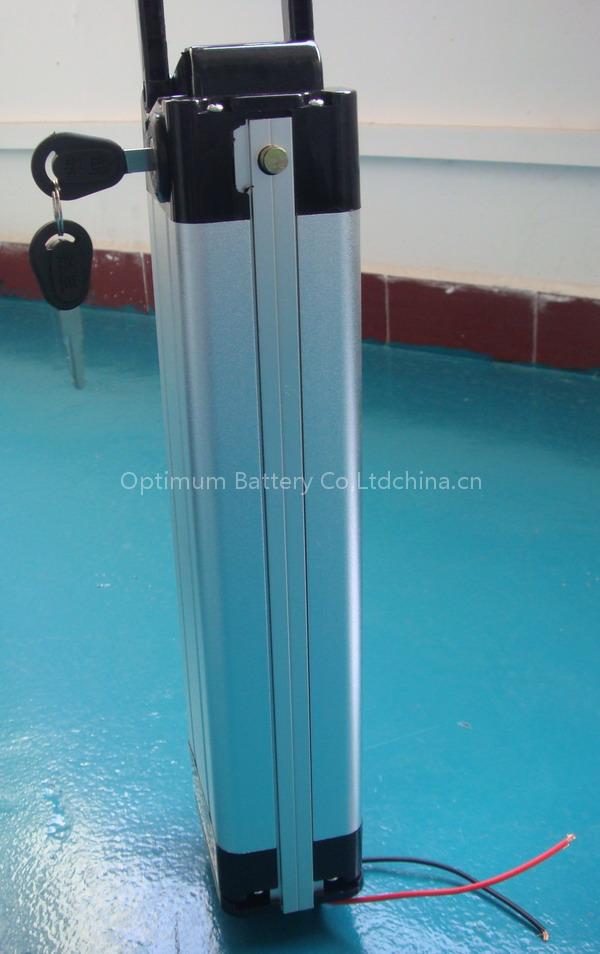

E-bike battery pack is a Telecommunications product. Key specs — Origin: China; Price Term: EXW.
Product Description
Model | IFR32650 | |||
Case material | Steel | |||
Standard capacity(0.2C5A) | 10Ah | |||
Rated voltage | 36V | |||
Max.Charge voltage | 43.8V | |||
Cut-off voltage | 30V | |||
Max.Charge current | 1C5A | |||
Max. constant discharge current | 2C5A | |||
Height | 206.0±0.5 mm | |||
Length | 140.0±0.5mm | |||
Width | 108.0±0.5mm | |||
Weight (Approx.) | About 3.5KG | |||
Impedance(Max, at 1000Hz.) | ≤ 35 mΩ | |||
Charge method (CC/CV) | Standard | CC | 0.2C | 43.8V cut off |
CV | 43.8V | 0.05C cut off | ||
Rapid | CC | 1C | 43.8V cut off | |
CV | 43.8V | 0.05C cut off | ||
Operate temperature | Charge | 0°C~45°C | ||
discharge | 0°C~45°C | |||
storage | 0°C~45°C | |||
LiFePO4 battery advantages
1)High capacity
2)long cycle life:Over 2000cycles with capacity stayign at 80% min.
3)No memory effect:Always ready for charge and use,with no need to charge after a full discharge.
4)No pollution,no explosion,environmental friendly
5)Well performance in hot /cold temperature
6)Fast charging ability
7)Offer full solution of battery +BMS +charger,which can protect from overchare,overdischarge,overheat.
