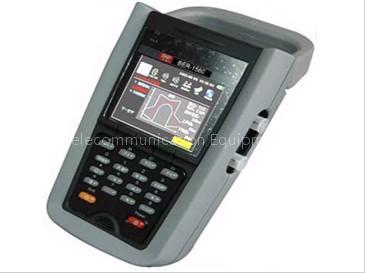

E1 BER Tester (BER-1560)

Overview:

BER-1560 Series Data Transmission Analyzers, the latest test solutions

developed by DADI, are the necessary tools for daily maintenance &

troubleshooting tasks. It fulfils 2M monitoring as well as BER test from 50b/s to

2048kb/s with the supported interfaces of G.703, V.24/RS232, V.35,

V.36/RS449, X.21, EIA-530/530A. Its characteristic remote monitoring

function makes it ideal for users to easily perform real-time monitoring to the test unit through certain software under Windows environment.

The BER-1560 series are configured with large and backlight color

TFT-LCD. Its built-in rechargeable Li-ion battery allows up to 8-hour field

operation without external power. Plus, it supports RJ45 interface and

complete TCP/IP protocols with on-line upgrade available.

Functions:

FAS, CRC monitoring of G.703 E1 circuit

1.E1 dual-interface monitoring

2. Various alarms and bit error injection

3. E1 signal pulse mask display

4. Audio test

5. E1 jitter test

6. Slip code test

G.703 64K Test

1.64K offline test

2.Alarm and bit error injection

3.ITU error index analysis

V Series Interface Test

1. V.24/RS232,V.35,V.36/RS449,EIA-530/530A,X.21 interface error

tests

2.Various operation mode setup

3.ITU error index analysis

PING Test

1.IP address setting

2.Ethernet connectivity test

Features:

1.Color TFT LCD

2.Comprehensive 2M circuit test functions

3.Kinds of errors injection and detection, i.e.: bit, code, FAS, CRC

4.Use PC to perform the remote control of the test set through Ethernet

5.Large capacity Li-ion battery guarantees the testing for more than 8 hours without external power

6.Large Digital Storage: store more than 10000 items
