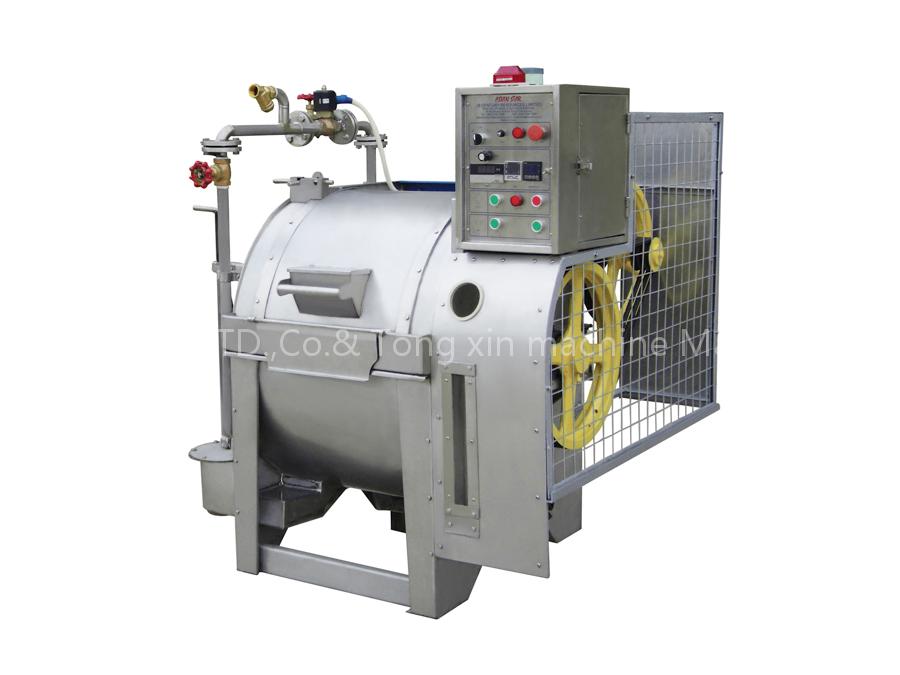

Dyeing Washer/Industrial Extractor
Specifications
- Brand
- Xinxin
- Origin
- China
Dyeing Washer/Industrial Extractor is a Textile Machine Parts product. Key specs — Brand: Xinxin; Origin: China.
Product Description
Dyeing Washer is suitable for jeans and knitting to wash and dye.
Dyeing Washer Performance Feature:
Rational structure, easy to operate.
Belt transmission,raising transmission ratio,reducing motor’s load.
Inner drum rolls forward or backward automatically so that fabrics are rolled uniformly.
The machine will be stopped when the machine’s door is opened because it is equipped with safe device.
Direct and indirect heating, guaranteeing dyeing liquid temperature and thickness.
Digital display thermometer, precise temperature.
Customers' Choice:
automatic entry and effluent water
air powered brake
rotational speed can be adjusted at will because of speed governor or frequency control device.
Dyeing Washer( Washing And Dyeing Machine) Technical data:
| MODEL | Loading Capacity | Drum Size | Overall Dimension | Total Power | Weight | |
| Kg | lb | Ä€×L(mm) | L×W×H(mm) | kw | kg | |
| XR-15 | 7 | 15 | Ä€510×630 | 1620×1040×1340 | 0.75 | 255 |
| XR-30 | 14 | 30 | Ä€740×480 | 1460×1320×1440 | 1.1 | 400 |
| XR-50 | 23 | 50 | Ä€740×800 | 1720×1320×1440 | 1.5 | 480 |
| XR-70 | 32 | 70 | Ä€790×970 | 1800×1380×1460 | 1.5 | 550 |
| XR-100 | 45 | 100 | Ä€900×770 | 1820×1540×1640 | 2.2 | 630 |
| XR-150 | 68 | 150 | Ä€1000×1000 | 1920×1660×1670 | 3 | 710 |
| XR-200 | 91 | 200 | Ä€1070×1200 | 2120×1740×1780 | 3 | 915 |
| XR-250 | 110 | 250 | Ä€980×1610 | 2550×1680×1670 | 4 | 1050 |
| XR-450 | 200 | 450 | Ä€1100×2220 | 3150×1820×1810 | 5.5 | 1700 |
| XR-550 | 250 | 550 | Ä€1220×2230 | 3200×1950×1990 | 7.5 | 2000 |
| XR-600 | 270 | 600 | Ä€1300×2220 | 3200×2030×2090 | 7.5/11 | 2060 |
| XR-800 | 360 | 800 | Ä€1220×3300 | 4380×1950×1990 | 11 | 2100 |
