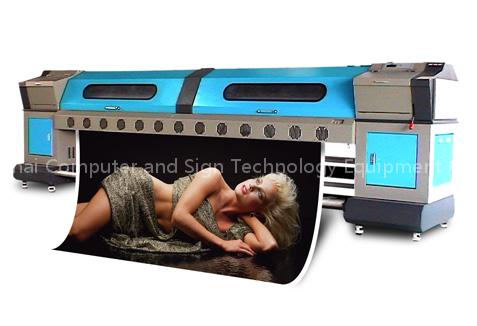

Digital Inkjet Printer

Application: out door printing (out door advertisement printing and out put)
Package: packed in wooden case
Attention: The working environment of this machine should be ventilated, dry and cool, high temperature, moisture and sun shine are bad for the printer, and any collision to the printer is forbidden.
Description for usage:
Well grounding is necessary, static occurring during the movement of the printer will damage the printer. The working environment of the printer should be ventilated and dry. For more details, please study the Operation Manual of the printer.
Remarks:
1.Automatically take up the media;
2. Two rolls automatically feeding the media;
3. Heating system;
4. Winding system.

Model CLA-2508
Technology Piezoelectric
PH/NO. XAAR-XJ128/8
Color CMYK four Colors
Width Media 252cm Printing 250cm
Resolution 185dpi/370dpi
Speed 2PASS 28sqmt/hr 4PASS 15sqmt/hr
Ink type Solvent ink
Media type Banner, vinyl, flex, mesh,etc
Media loading Roll&sheet automatic media feeder
Ink supply Pressing pump automatic supplying
PH cleaning Auto cleaning, auto flash jet
Heating Built-in heater, outside winding apparatus
Printing interface LPT EPP 1.9
Enviroment Temp: 20~27 degree Humidity: 40~70% relative Power: single phase 50 Hz
Requirement 220(+/- 10%)>15A Air pressure: 1atm standard Distortion < 2%
Package size Printer 3650 * 720 * 570mm Frame 1750 * 600 * 450mm
